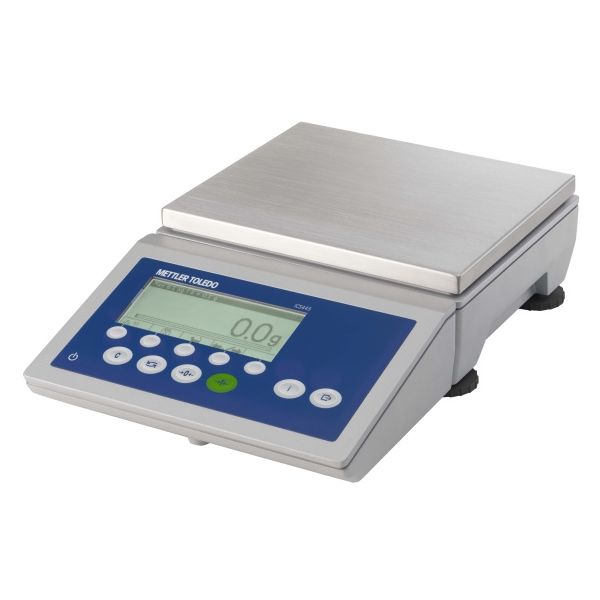

Compact Scale ICS445s-3SM/f/65

Reliable Performance.

Strain Gauge Technology

The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.

Durable and Rugged

Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.

Dust Proof

IP65 ingress-protected housing is optimal for use in dusty environments.

Specifications - Compact Scale ICS445s-3SM/f/65
Maximum Capacity
6 lb (3 kg)
Readability
0.0005 lb (0.05 g)
Readability (Certified)
0.001 lb
Repeatability (sd)
0.000066 lb (0.03 g)
Platform Size (LxWxH)
7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)
Material
Aluminium diecast
Protection Rating
IP65
Repeatability
0.0001 lb (0.05 g)
Hazardous Approval
No
Display
Graphic LCD with backlit
Housing
Aluminum Diecast
Interfaces
RS232
Repeatability (typical)
0.03 g
Repeatability (typical)
0.000066 lb
Application Software
Counting; Dynamic Weighing; Simple weighing
Applications
Counting; Dynamic weighing; Simple Weighing
Data Interface
Ethernet; Serial; USB; WLAN
Environment
Dusty & Light Wet (IP65)
Hazardous Area
Non-hazardous area
Legal for Trade
NTEP
Interfaces (Optional)
Discrete I/O; Ethernet; RS422; RS485; USB; WLAN
Scale Interface
SICSpro
Voltage
AC Version; Battery Version
Hygenic Design
No
Platform Type
Counting Scales
Material Number(s)
22023064

Documentation

Quick Guide

Accessories

Consumables
