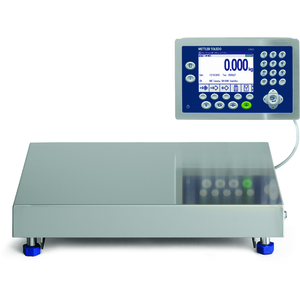

ICS689g-QB15 - Overview - METTLER TOLEDO


Excellence Results.

Efficient weighing procedures

An optimal combination between terminal and weighing platform (t-, f- or c-version) leads to less production failure and speeds up your productivity.

Track and trace your results

Cover all requirements of your customer/regulatory body - possible with our user management, alibi memory, routine test and calibration log feature.

Ergonomic design for operator comfort in manual operations

All you need for Over/Under checkweighing. The colorWeight function® improves your throughput. Fast and comfortable changing of Over/Under parameters.

Specifications - ICS689g-QB15
Maximum Capacity
6 kg/15 kg (25 lb)
0.5 g (0.001 lb)
0.2 g (0.00044 lb)
Platform Size (Length)
305 mm (12 in)
Platform Size (Width)
305 mm (12 in)
Platform Size (Height)
97 mm (3.8 in)
Stainless Steel V2A (AISI 304)
Protection Rating
IP69k; IP68
Color TFT screen
Readability (Certified)
2 g; 5 g (0.005 lb)
Stainless Steel V2A (AISI 304)
0.5 g
0.001 lb
Repeatability (typical)
0.2 g
Repeatability (typical)
0.00044 lb
Hazardous Approval
Application Software
Pick&Pack; Formulation; Dynamic Weighing; Counting; Simple weighing; Over Under Checkweighing
Legal for Trade
Data Interface (mt.com)
Serial; USB; Ethernet; WLAN
Simple Weighing; Dynamic weighing; Pick&Pack; Formulation; Counting; Over Under Checkweighing
Wet & Harsh Wet (>/=IP66)
Hazardous Area
Non-hazardous area
Battery Version; AC Version
Scale Interface
Interfaces (Optional)
USB; Ethernet; RS422; RS485; WLAN; Discrete I/O
Hygenic Design
Performance Optimization
MinWeigh: Minimum Weigh determination acc. your tolerance limits; Easy Scale Leveling: For fast & precise leveling; Smart Counting: Average Piece Weight Optimization; High Resolution: Special aluminum strain gauge load cell
Process Integration
Control Additional Platforms: Up to 4 platforms attachable; 1 Standard & 3 Optional Interfaces: RS, USB, Ethernet, WLAN, Dig. I/O; Variety of Interfaces: For easy process integration; Configurable Softkeys: Grants fast access to key functions; Easy to read: L
Data Management
Powerful Database: Stores up to 5'000 articles; Comprehensive Statistics: Average Piece Weight, Min., Max. Values; Smart Printing: Predefined & User-definable print & label templates; Fast Data Import & Export: With USB Stick or directly via Ethernet
Compliance Support
User Management: Settable user profiles; User Prompting: Control the process; Alibi Memory: Stores all weighing results; Intuitive User Interface: Prevents from user errors; Hygienic Designed: EHEDG & NSF approved & Easy to Clean
Mobile Operation: Built-in battery available; colorWeight: Highly configurable color display; Easy to read: Large full color TFT display; Fast Totalizing: Totalizing to a target weight or count; Numeric Keypad: For fast operation; Intuitive Checkweighing and Counting: Absolute & relative targets; Versatile Scale: For demanding weighing tasks in wet environment
Maximum Capacity (AM metric)
10 kg
Platform Type
Bench Scale
Legal for Trade Class OIML
Class III
Legal for Trade Class NTEP
Class III
Readability (Certified) (AM metric)
2 g
Zero Return (typical)
0.4 g (0.00088 lb)
Error of Indication at half load (typical)
1.5 g (0.0033 lb)
Hysteresis (typical)
1.6 g (0.0036 lb)
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
2.1 g
Eccentric Load Deviation at 1/3 of Full Load (typical)
0.0047 lb
Error of Indication at full load (typical)
0.6 g (0.0014 lb)
EasyPrint Name
Material Number(s)
