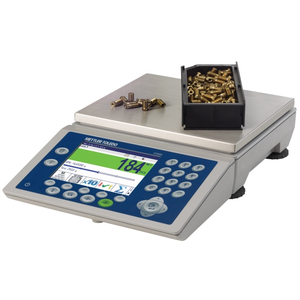

Compact Scale ICS685k-6SM/f
Highly Precise.
Greater Manufacturing Accuracy and Quality
The ICS685, made with MonoBloc® Technology, stands for total flexibility. Benefit from its wide range of applications, user management features and powerful internal database
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Easy to Operate
User-definable function keys, large colored TFT display and customizable user prompting make everyday operations fast and more precise.
Product Family:bench-scale0003000400020024
Maximum Capacity:12 lb (6 kg)Maximum Capacity:12 lbMaximum Capacity:6 kgReadability:0.0002 lb (0.1 g)Readability:0.0002 lbReadability:0.1 gReadability (Certified):0.002 lb (0.2 g)Readability (Certified):0.002 lb (0.2 g)Repeatability (sd):0.000011 lb (0.005 g)Repeatability (sd):0.000011 lb (0.005 g)Platform Size (LxW):7.9 in x 9.5 in (200 mm x 240 mm)Platform Size (LxW):7.9 in x 9.5 in (200 mm x 240 mm)Material:Aluminium diecastMaterial:Aluminium diecastProtection Rating:IP54Protection Rating:IP54Repeatability:0.0002 lb (0.1 g)Repeatability:0.0002 lb (0.1 g)Hazardous Approval:NoHazardous Approval:NoDisplay:Color TFT screenDisplay:Color TFT screenHousing:Aluminum DiecastHousing:Aluminum DiecastInterfaces:RS232Interfaces:RS232Applications:Over Under Checkweighing; Simple Weighing; CountingApplications:Over Under CheckweighingApplications:Simple WeighingApplications:CountingEnvironment:Dry (<IP65)Environment:Dry (<IP65)Legal for Trade:OIMLLegal for Trade:OIMLInterfaces (Optional):Discrete I/O; Ethernet; RS422; RS485; USB; WLANInterfaces (Optional):Discrete I/OInterfaces (Optional):EthernetInterfaces (Optional):RS422Interfaces (Optional):RS485Interfaces (Optional):USBInterfaces (Optional):WLANVoltage:AC Version; Battery VersionVoltage:AC VersionVoltage:Battery VersionHygenic Design:NoHygenic Design:NoPlatform Type:Counting ScalesPlatform Type:Counting Scales
Specifications - Compact Scale ICS685k-6SM/f
| Maximum Capacity | 12 lb (6 kg) |
| Readability | 0.0002 lb (0.1 g) |
| Readability (Certified) | 0.002 lb (0.2 g) |
| Repeatability (sd) | 0.000011 lb (0.005 g) |
| Platform Size (LxW) | 7.9 in x 9.5 in (200 mm x 240 mm) |
| Material | Aluminium diecast |
| Protection Rating | IP54 |
| Repeatability | 0.0002 lb (0.1 g) |
| Hazardous Approval | No |
| Display | Color TFT screen |
| Housing | Aluminum Diecast |
| Interfaces | RS232 |
| Applications | Over Under Checkweighing; Simple Weighing; Counting |
| Environment | Dry (<IP65) |
| Legal for Trade | OIML |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Voltage | AC Version; Battery Version |
| Hygenic Design | No |
| Platform Type | Counting Scales |
| Material Number(s) | 22023695 |
