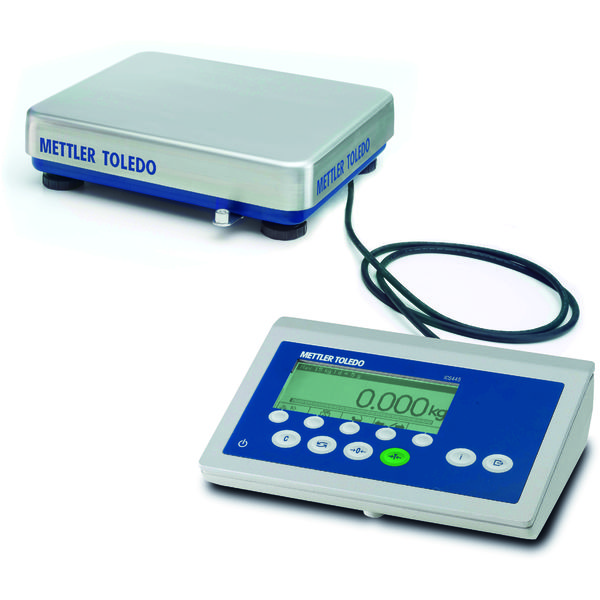

Bench Scale ICS445s-CC300/t/M
Strain Gauge Technology
The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Withstands Harsh, Dry and Dust-Contaminated Environments
The IP65-approved PBD655 Platform digital platform series is built for challenging environments.
|Maximum Capacity||300 kg|
|Readability (Certified)||50 g|
|Repeatability (sd)||1.3 g|
|Platform Size (LxWxH)||23.6 in x 31.5 in x 4.7 in (600 mm x 800 mm x 120 mm)|
|Material||Platform: Carbon Steel; Terminal: Aluminium diecast|
|Display||Graphic LCD with backlit|
|Housing||Platform: Carbon Steel; Terminal: Aluminium diecast|
|Application Software||Counting; ; Simple weighing|
|Repeatability (typical)||1.3 g|
|Applications||Counting; Dynamic weighing; Simple Weighing|
|Data Interface||Ethernet; Serial; USB; WLAN|
|Dimensions/Platform Size||from 19.8" to 31.5"; from 501 to 800 mm|
|Environment||Dusty & Light Wet (IP65)|
|Legal for Trade||OIML|
|Interfaces (Optional)||Discrete I/O; Ethernet; RS422; RS485; USB; WLAN|
|Voltage||AC Version; Battery Version|
|Platform Type||Bench Scale|
