Bench Scale ICS445s-CC120/t/M - Overview - METTLER TOLEDO

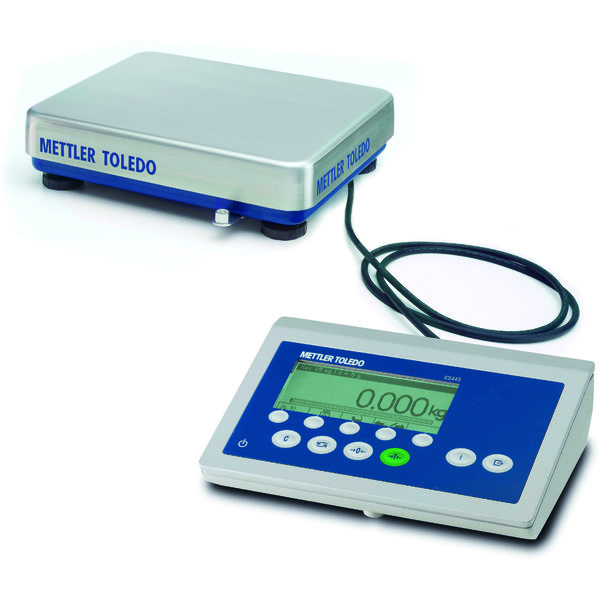

Bench Scale ICS445s-CC120/t/M

Reliable Performance.

Strain Gauge Technology

The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.

Durable and Rugged

Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.

Withstands Harsh, Dry and Dust-Contaminated Environments

The IP65-approved PBD655 Platform digital platform series is built for challenging environments.

Specifications - Bench Scale ICS445s-CC120/t/M
Maximum Capacity 120 kg
Readability (Certified) 20 g
Repeatability (sd) 1.2 g
Platform Size (LxWxH) 23.6 in x 31.5 in x 4.7 in (600 mm x 800 mm x 120 mm)
Material Platform: Carbon Steel; Terminal: Aluminium diecast
Protection Rating IP65
Display Graphic LCD with backlit
Interfaces RS232
Housing Platform: Carbon Steel; Terminal: Aluminium diecast
Repeatability 2 g
Application Software Counting; Dynamic Weighing; Simple weighing
Hazardous Approval No
Repeatability (typical) 1.2 g
Applications Counting; Dynamic weighing; Simple Weighing
Data Interface Ethernet; Serial; USB; WLAN
Dimensions/Platform Size from 19.8" to 31.5"; from 501 to 800 mm
Environment Dusty & Light Wet (IP65)
Legal for Trade OIML
Interfaces (Optional) Discrete I/O; Ethernet; RS422; RS485; USB; WLAN
Scale Interface SICSpro
Voltage AC Version; Battery Version
Hygenic Design No
Platform Type Bench Scale
Material Number(s) 22023242
