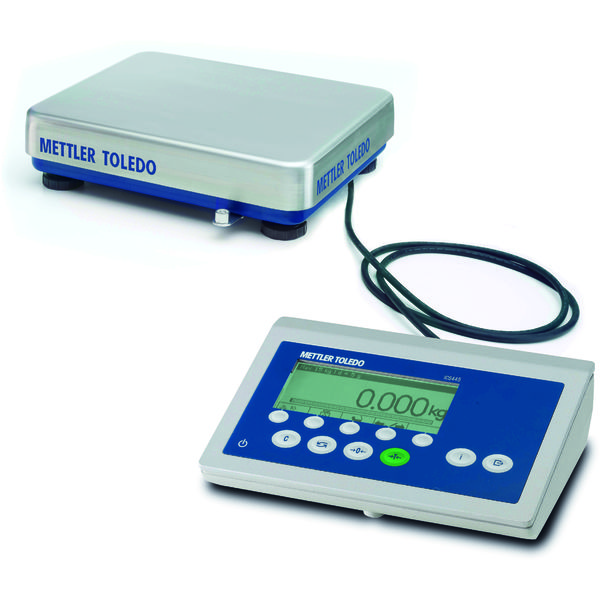

Bench Scale ICS445s-B60/t/M
Reliable Performance.
Strain Gauge Technology
The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Withstands Harsh, Dry and Dust-Contaminated Environments
The IP65-approved PBD655 Platform digital platform series is built for challenging environments.
Product Family:bench-scale0003000400030028
Maximum Capacity:60 kgMaximum Capacity:60 kgReadability (Certified):10 gReadability (Certified):10 gRepeatability (sd):0.6 gRepeatability (sd):0.6 gPlatform Size (LxWxH):15.7 in x 19.7 in x 3.4 in (400 mm x 500 mm x 86 mm)Platform Size (LxWxH):15.7 in x 19.7 in x 3.4 in (400 mm x 500 mm x 86 mm)Material:Platform: Carbon Steel; Terminal: Aluminium diecastMaterial:Platform: Carbon SteelMaterial:Terminal: Aluminium diecastProtection Rating:IP65Protection Rating:IP65Display:Graphic LCD with backlitDisplay:Graphic LCD with backlitInterfaces:RS232Interfaces:RS232Housing:Platform: Carbon Steel; Terminal: Aluminium diecastHousing:Platform: Carbon SteelHousing:Terminal: Aluminium diecastRepeatability:1 gRepeatability:1 gApplication Software:Counting; ; Simple weighingApplication Software:CountingApplication Software: Application Software:Simple weighingHazardous Approval:NoHazardous Approval:NoRepeatability (typical):0.6 gRepeatability (typical):0.6 gApplications:Counting; Dynamic weighing; Simple WeighingApplications:CountingApplications:Dynamic weighingApplications:Simple WeighingData Interface:Ethernet; Serial; USB; WLANData Interface:EthernetData Interface:SerialData Interface:USBData Interface:WLANDimensions/Platform Size:from 15.8" to 19.7"; from 401 to 500 mmDimensions/Platform Size:from 15.8" to 19.7"Dimensions/Platform Size:from 401 to 500 mmEnvironment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Legal for Trade:OIMLLegal for Trade:OIMLInterfaces (Optional):Discrete I/O; Ethernet; RS422; RS485; USB; WLANInterfaces (Optional):Discrete I/OInterfaces (Optional):EthernetInterfaces (Optional):RS422Interfaces (Optional):RS485Interfaces (Optional):USBInterfaces (Optional):WLANScale Interface:SICSproScale Interface:SICSproVoltage:AC Version; Battery VersionVoltage:AC VersionVoltage:Battery VersionHygenic Design:NoHygenic Design:NoPlatform Type:Bench ScalePlatform Type:Bench Scale
Specifications - Bench Scale ICS445s-B60/t/M
| Maximum Capacity | 60 kg |
| Readability (Certified) | 10 g |
| Repeatability (sd) | 0.6 g |
| Platform Size (LxWxH) | 15.7 in x 19.7 in x 3.4 in (400 mm x 500 mm x 86 mm) |
| Material | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Protection Rating | IP65 |
| Display | Graphic LCD with backlit |
| Interfaces | RS232 |
| Housing | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Repeatability | 1 g |
| Application Software | Counting; ; Simple weighing |
| Hazardous Approval | No |
| Repeatability (typical) | 0.6 g |
| Applications | Counting; Dynamic weighing; Simple Weighing |
| Data Interface | Ethernet; Serial; USB; WLAN |
| Dimensions/Platform Size | from 15.8" to 19.7"; from 401 to 500 mm |
| Environment | Dusty & Light Wet (IP65) |
| Legal for Trade | OIML |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Scale Interface | SICSpro |
| Voltage | AC Version; Battery Version |
| Hygenic Design | No |
| Platform Type | Bench Scale |
| Material Number(s) | 22023237 |
