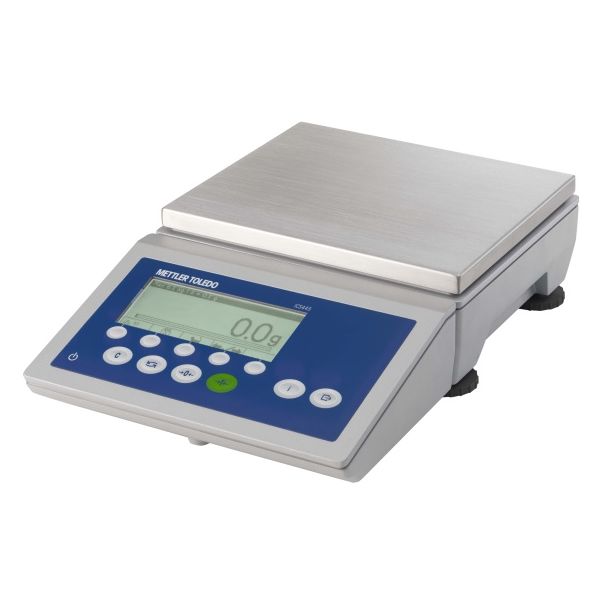

Compact Scale ICS445s-3SM/f/M
Strain Gauge Technology
The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
This system is legal for trade, and its accuracy is guaranteed by a nationally accredited facility prior to shipment.
|Maximum Capacity Maximum Capacity:3 kgMaximum Capacity:3 kg||3 kg|
|Readability (Certified)||0.5 g|
|Repeatability (sd)||0.03 g|
|Platform Size (LxWxH) Platform Size (LxWxH):7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)Platform Size (LxWxH):7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)||7.9 in x 9.5 in x 3.7 in (200 mm x 240 mm x 95 mm)|
|Protection Rating Protection Rating:IP54Protection Rating:IP54||IP54|
|Hazardous Approval Hazardous Approval:NoHazardous Approval:No||No|
|Display||Graphic LCD with backlit|
|Legal for Trade Legal for Trade:OIMLLegal for Trade:OIML||OIML|
|Repeatability (typical)||0.03 g|
|Interfaces (Optional)||Discrete I/O; Ethernet; RS422; RS485; USB; WLAN|
|Voltage||AC Version; Battery Version|
|Environment Environment:Dry (<IP65)Environment:Dry (<IP65)||Dry (<IP65)|
|Hygenic Design Hygenic Design:NoHygenic Design:No||No|
|Applications Applications:Over Under Checkweighing; Counting / Counting Applications; Simple Weighing / Basic WeighingApplications:Over Under CheckweighingApplications:Counting / Counting ApplicationsApplications:Simple Weighing / Basic Weighing||Over Under Checkweighing; Counting / Counting Applications; Simple Weighing / Basic Weighing|
|Platform Type||Counting Scales|
