Compact Scale ICS435s-15LA/f/M/65 - Overview - METTLER TOLEDO

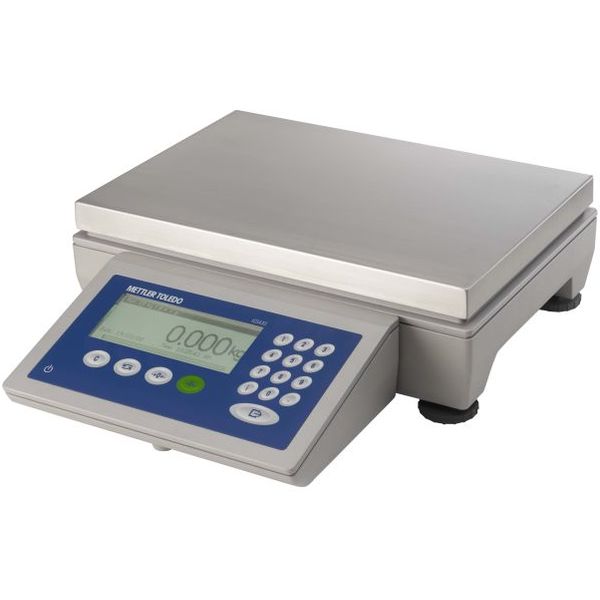

Compact Scale ICS435s-15LA/f/M/65

Reliable Performance.

Strain Gauge Technology

ICS435, the basic weighing level solution, is optimized for quick and easy weighing applications. It features a numeric keypad for quick pretaring.

Durable and Rugged

Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.

Dust-Proof with Guaranteed Accuracy

This dust-proof system is legal for trade, and its accuracy is guaranteed by a nationally accredited facility prior to shipment.

Specifications - Compact Scale ICS435s-15LA/f/M/65
Maximum Capacity
15 kg
Readability (Certified)
2 g
Repeatability (sd)
0.1 g
Platform Size (Length)
240 mm (11 in)
Platform Size (Width)
350 mm (13.8 in)
Platform Size (Height)
110 mm (4.3 in)
Aluminium diecast
Protection Rating
0.2 g
Hazardous Approval
Aluminum Diecast
Graphic LCD with backlit
Repeatability (typical)
0.1 g
Application Software
Dynamic Weighing; Simple weighing
Legal for Trade
Data Interface
Serial; USB; Ethernet; WLAN
Simple Weighing; Dynamic weighing
Dusty & Light Wet (IP65)
Hazardous Area
Non-hazardous area
Battery Version; AC Version
Scale Interface
Interfaces (Optional)
USB; Ethernet; RS422; RS485; WLAN; Discrete I/O
Hygenic Design
Performance Optimization
MinWeigh: Minimum Weigh determination acc. your tolerance limits; Easy Scale Leveling: For fast & precise leveling; High Resolution: Special aluminum strain gauge load cell
Process Integration
Variety of Interfaces: For easy process integration; 1 Standard & 1 Optional Interface: Serial, USB, Ethernet, WLAN, Dig. I/O; Control Additional Platforms: 1 platform attachable
Data Management
Convenient Printing: Easy creation of print & label templates; Custom Print Formats: Odette, AIAG, Galia etc.
Compliance Support
Intuitive User Guidance: Prevents from operator errors
Mobile Operation: Battery optional available; Good Readability: Graphic LCD-Display with backlit; Numeric Keypad: For fast operation; Versatile Scale: For demanding weighing tasks in dry environment
Platform Type
Compact Scale
Legal for Trade Class OIML
Class III
Zero Return (typical)
0.1 g
Error of Indication at half load (typical)
0.2 g
Hysteresis (typical)
0.2 g
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
0.9 g
Error of Indication at full load (typical)
0.2 g
EasyPrint Name
Material Number(s)


Quick Guide

Product Documentation



Get Your Quote
Compact Scale ICS435s-15LA/f/M/65
