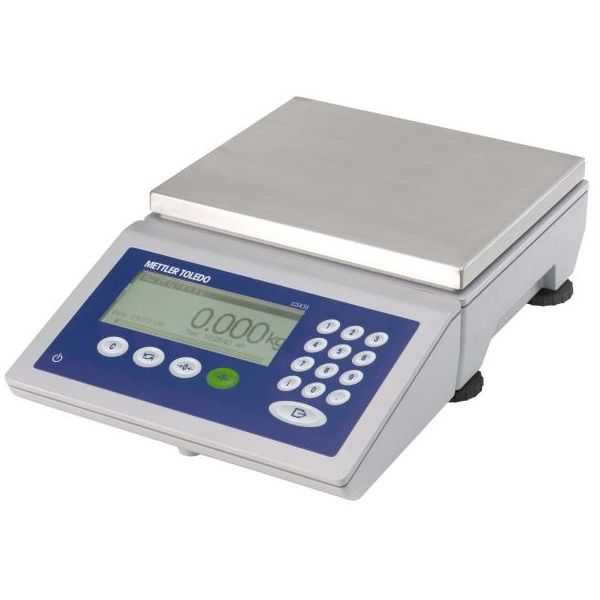

Compact Scale ICS435k-6SM/f
Highly Precise.
Greater Manufacturing Accuracy and Quality
The ICS435, made with MonoBloc® Technology, is the basic weighing level solution optimized for quick and easy weighing applications. It features a numeric keypad for quick pretaring.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Material No.: 22023140
Product Family:bench-scale00030101
Specifications - Compact Scale ICS435k-6SM/f
| Maximum Capacity | 12 lb (6 kg) |
| Readability | 0.0002 lb (0.1 g) |
| Readability (Certified) | 0.002 lb (1 g) |
| Repeatability (sd) | 0.00001 lb (0.005 g) |
| Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.5 in (200 mm x 95 mm x 240 mm) |
| Material | Aluminum die casting |
| Protection Rating | IP54 |
| Repeatability | 0.0002 lb |
| Hazardous Approval | No |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 |
| Display | Graphic LCD with backlight |
| Repeatability, typical | 0.005 g |
| Repeatability, (typical) | 0.00001 lb |
| Application Software | Dynamic Weighing Simple weighing |
| Data Interface | Serial USB Ethernet |
| Environment | Dry (<IP65) |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area |
| Applications | Simple Weighing Dynamic weighing |
| Voltage | Battery Version AC Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | USB Ethernet RS422 RS485 Discrete I/O |
| Hygienic Design | No |
| Platform Type | Compact Scale |
