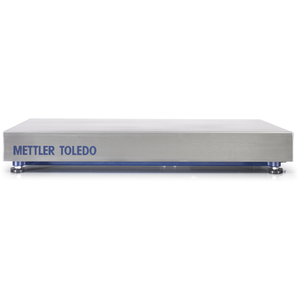

Weighing Platform Ex PBA655x-CC300 US

For Accurate Weighing.

For High Precision Applications

The PBA655x extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing precision.

Highly Durable

The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.

Hazardous Area Approved

The PBA655x platform series is suitable for hazardous environments according FM IS / Class, I, II, III / Division 1.

Specifications - Weighing Platform Ex PBA655x-CC300 US
Maximum Capacity 500 lb (300 kg)
Readability 0.01 lb (5 g)
Readability (Certified) 0.05 lb (50 g)
Repeatability (sd) 0.0082 lb (3.7 g)
Platform Size (LxW) 23.6 in x 31.5 in (600 mm x 800 mm)
Hazardous Approval FM Class I, Div. 1; ATEX; FM
Material Powder Coated Carbon Steel
Repeatability 0.01 lb (5 g)
Linearity (typical) 0.02 lb
Linearity 0.05 lb (50 g)
Linearity, typically 10 g
Protection Rating IP65
Cable 8.2 ft (2.5 m)
Applications Over Under Checkweighing; Counting / Counting Applications; In motion Weighing / Dynamic Weighing; Simple Weighing
Legal for Trade OIML
Hygenic Design No
Platform Type Bench Platforms
Repeatability (typical) 0.01 lb
Repeatability (typical) 5 g
Scale Interface Analog
Material Number(s) 30024703
