Weighing Platform PBA655-CC600 - Overview - METTLER TOLEDO

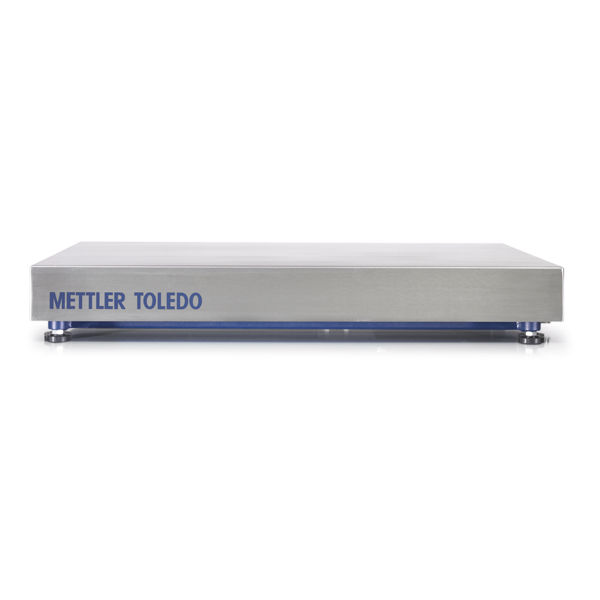

Weighing Platform PBA655-CC600

For Accurate Weighing.

For High Precision Applications

The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.

Highly Durable

The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.

Damage Protected

The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.

Specifications - Weighing Platform PBA655-CC600
Maximum Capacity 1,000 lb (300 kg/600 kg)
Readability 0.02 lb (10 g)
Repeatability (sd) 0.0092 lb (4.2 g)
Platform Size (LxWxH) 23.6 in x 31.5 in x 4.72 in (600 mm x 800 mm x 120 mm)
Material Powder Coated Carbon Steel
Protection Rating IP65
Hazardous Approval No
Readability (Certified) 100 g; 200 g
Repeatability 0.02 lb (10 g)
Dimensions (HxLxW) 4.72 in x 23.6 in x 31.5 in (120 mm x 600 mm x 800 mm)
Repeatability (typical) 0.05 lb
Repeatability (typical) 20 g
Weighing Pan Dimensions (HxLxW) 3.27 in x 23.6 in x 31.5 in (83 mm x 600 mm x 800 mm)
Cable 8.2 ft (2.5 m)
Hygenic Design No
Linearity (typical) 0.1 lb
Linearity, typically 40 g
Platform Type Bench Platforms
Scale Interface Analog
Material Number(s) 30024652
