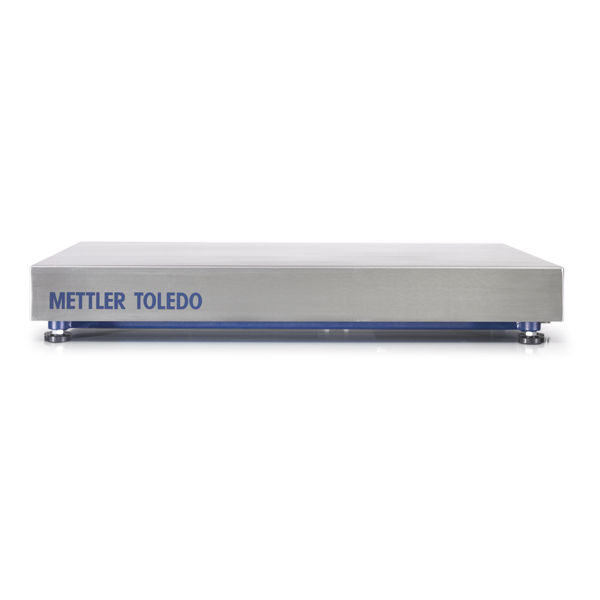

Weighing Platform PBA655-CC120

For Accurate Weighing.

For High Precision Applications

The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.

Highly Durable

The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.

Damage Protected

The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.

Specifications - Weighing Platform PBA655-CC120
Maximum Capacity 200 lb (120 kg)
Readability 0.005 lb (2 g)
Repeatability (sd) 0.0044 lb (2 g)
Platform Size (LxWxH) 23.6 in x 31.5 in x 4.72 in (600 mm x 800 mm x 120 mm)
Material Powder Coated Carbon Steel
Protection Rating IP65
Hazardous Approval No
Readability (Certified) 0.02 lb (20 g)
Repeatability 0.005 lb (2 g)
Dimensions (HxLxW) 4.72 in x 23.6 in x 31.5 in (120 mm x 600 mm x 800 mm)
Repeatability (typical) 0.005 lb
Repeatability (typical) 2 g
Weighing Pan Dimensions (HxLxW) 3.27 in x 23.6 in x 31.5 in (83 mm x 600 mm x 800 mm)
Cable 8.2 ft (2.5 m)
Hygenic Design No
Linearity (typical) 0.01 lb
Linearity, typically 5 g
Maximum Capacity 100 kg
Platform Type Bench Platforms
Readability (Certified) 10 g
Scale Interface Analog
Material Number(s) 30024650
