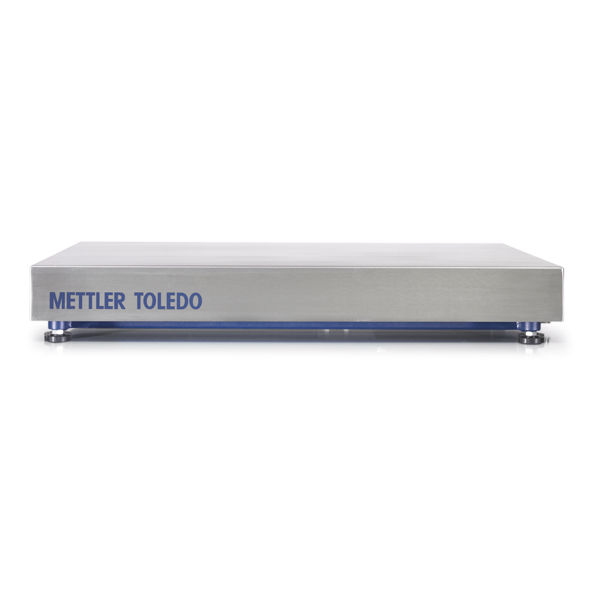

Weighing Platform PBA655-BC60

For Accurate Weighing.

For High Precision Applications

The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.

Highly Durable

The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.

Damage Protected

The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.

Specifications - Weighing Platform PBA655-BC60
Maximum Capacity 100 lb (60 kg)
Readability 0.002 lb (1 g)
Repeatability (sd) 0.0016 lb (0.7 g)
Platform Size (LxWxH) 19.7 in x 25.6 in x 4.33 in (500 mm x 650 mm x 110 mm)
Material Powder Coated Carbon Steel
Protection Rating IP65
Hazardous Approval No
Readability (Certified) 0.01 lb (10 g)
Repeatability 0.002 lb (1 g)
Dimensions (HxLxW) 4.33 in x 19.7 in x 25.6 in (110 mm x 500 mm x 650 mm)
Repeatability (typical) 0.002 lb
Repeatability (typical) 1 g
Weighing Pan Dimensions (HxLxW) 2.87 in x 19.7 in x 25.6 in (73 mm x 500 mm x 650 mm)
Cable 8.2 ft (2.5 m)
Hygenic Design No
Linearity (typical) 0.005 lb
Linearity, typically 2 g
Maximum Capacity 50 kg
Platform Type Bench Platforms
Readability (Certified) 5 g
Scale Interface Analog
Material Number(s) 30024646
