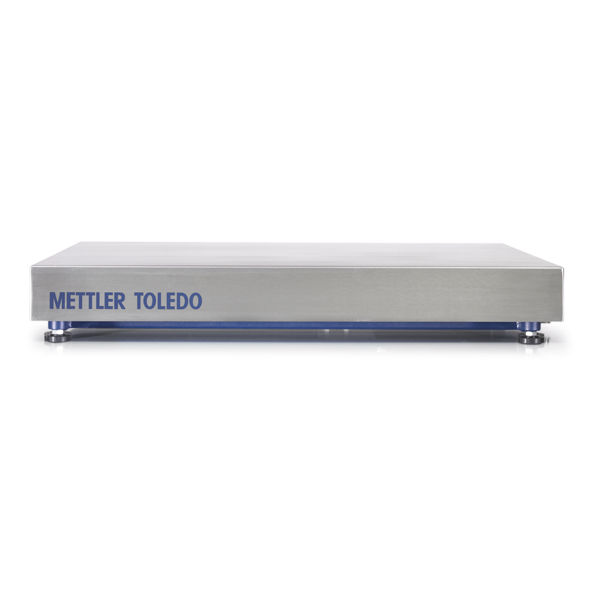

Weighing Platform PBA655-BC120
For Accurate Weighing.
For High Precision Applications
The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.
|Maximum Capacity||200 lb (120 kg)|
|Readability||0.005 lb (2 g)|
|Repeatability (sd)||0.0033 lb (1.5 g)|
|Platform Size (LxWxH)||19.7 in x 25.6 in x 4.33 in (500 mm x 650 mm x 110 mm)|
|Material||Powder Coated Carbon Steel|
|Readability (Certified)||0.02 lb (20 g)|
|Repeatability||0.005 lb (2 g)|
|Dimensions (HxLxW)||4.33 in x 19.7 in x 25.6 in (110 mm x 500 mm x 650 mm)|
|Repeatability (typical)||0.005 lb|
|Repeatability (typical)||2 g|
|Weighing Pan Dimensions (HxLxW)||2.87 in x 19.7 in x 25.6 in (73 mm x 500 mm x 650 mm)|
|Cable||8.2 ft (2.5 m)|
|Dimensions/Platform Size||from 19.8" to 31.5"; from 501 to 800 mm|
|Environment||Dusty & Light Wet (IP65)|
|Legal for Trade||NTEP; OIML|
|Linearity (typical)||0.01 lb|
|Linearity, typically||5 g|
|Maximum Capacity||100 kg|
|Platform Type||Bench Platforms|
|Readability (Certified)||10 g|
