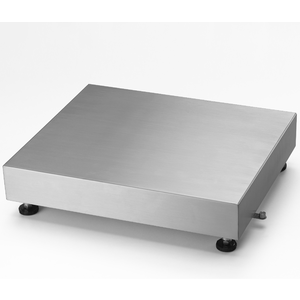

Weighing Platform PBA429X-QB15H
For Demanding Applications.
The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).
Easy to Clean
The open and sturdy platform design, built according to hygienic standards, allowing fast, thorough and easy cleaning.
Hazardous Area Approved
This platform is suitable for ATEX zone 1/21, the load cell is approved according FM Class I, II, III, Division 1 and it features a hygienic kit.
|Maximum Capacity||25 lb (15 kg)|
|Readability||0.002 lb (1 g)|
|Readability (Certified)||0.005 lb (5 g)|
|Repeatability (sd)||0.0009 lb (0.4 g)|
|Platform Size (LxWxH)||12 in x 12 in x 3.81 in (305 mm x 305 mm x 108 mm)|
|Hazardous Approval||ATEX Cat. 2GD; FM Class I, Div. 1|
|Material||Stainless Steel V2A (AISI 304)|
|Repeatability||0.002 lb (1 g)|
|Dimensions (HxLxW)||3.81 in x 12 in x 12 in (108 mm x 305 mm x 305 mm)|
|Linearity (typical)||0.005 lb|
|Linearity||0.005 lb (5 g)|
|Linearity, typically||5 g|
|Maximum Capacity||10 kg|
|Protection Rating||IP68; IP69k|
|Readability (Certified)||2 g|
|Weighing Pan Dimensions (HxLxW)||2.24 in x 12 in x 12 in (57 mm x 305 mm x 305 mm)|
|Cable||9.9 ft (3 m)|
|Dimensions/Platform Size||</=400 mm; from 6.3" to 15.7"|
|Environment||Wet & Harsh Wet (</=IP66)|
|Hazardous Area||ATEX for Zone 1/21; FM Div. 1|
|Legal for Trade||NTEP; OIML|
|Platform Type||Bench Platforms|
|Repeatability (typical)||0.0009 lb|
|Repeatability (typical)||0.4 g|
