Weighing Platform PBA429-QB60 - Overview - METTLER TOLEDO

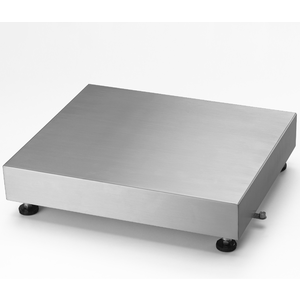

Weighing Platform PBA429-QB60

For Demanding Applications.

High Durability

The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).

Easy to Clean

The open and sturdy platform design is built according to hygienic standards and allows fast, thorough and easy cleaning.

Damage Protected

Optimally placed and specific adjusted overload stops grant the best possible protection against load cell damaging.

Specifications - Weighing Platform PBA429-QB60
Maximum Capacity 100 lb (60 kg)
Readability 0.01 lb (5 g)
Repeatability (sd) 0.0047 lb (2.1 g)
Platform Size (LxW) 12 in x 12 in (305 mm x 305 mm)
Material Stainless Steel V2A (AISI 304)
Protection Rating IP68; IP69k
Hazardous Approval No
Readability (Certified) 0.02 lb (20 g)
Repeatability 0.01 lb (5 g)
Cable 9.9 ft (3 m)
Resolution 0.02 lb (20 g)
Hygenic Design No
Linearity (typical) 0.02 lb
Linearity 0.02 lb (20 g)
Linearity, typically 20 g
Maximum Capacity 50 kg
Platform Type Bench Platforms
Readability (Certified) 10 g
Scale Interface Analog
Material Number(s) 71211158
