Weighing Platform PBA429-QA3 - Overview - METTLER TOLEDO

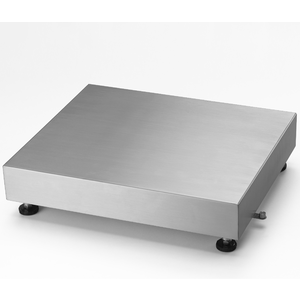

Weighing Platform PBA429-QA3

For Demanding Applications.

High Durability

The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).

Easy to Clean

The open and sturdy platform design is built according to hygienic standards and allows fast, thorough and easy cleaning.

Damage Protected

Optimally placed and specific adjusted overload stops grant the best possible protection against load cell damaging.

Specifications - Weighing Platform PBA429-QA3
Maximum Capacity 5 lb (3 kg)
Readability 0.0005 lb (0.2 g)
Repeatability (sd) 0.00022 lb (0.1 g)
Platform Size (LxW) 9 in x 9 in (229 mm x 229 mm)
Material Stainless Steel V2A (AISI 304)
Protection Rating IP68; IP69k
Hazardous Approval No
Readability (Certified) 1 g
Repeatability 0.0005 lb (0.2 g)
Cable 9.9 ft (3 m)
Resolution 0.001 lb (1 g)
Hygenic Design No
Linearity (typical) 0.001 lb
Linearity, typically 1 g
Platform Type Bench Platforms
Scale Interface Analog
Material Number(s) 71211154
