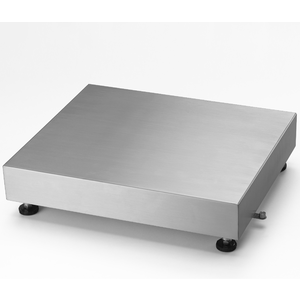

Weighing Platform PBA429-BB60
For Demanding Applications.
The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).
Easy to Clean
The open and sturdy platform design is built according to hygienic standards and allows fast, thorough and easy cleaning.
To easily reduce on site-contamination, this platform features a hygienic-kit, containing specially designed leveling kits and overload stops.
|Maximum Capacity||100 lb (60 kg)|
|Readability||0.01 lb (5 g)|
|Repeatability (sd)||0.0047 lb (2.1 g)|
|Platform Size (LxWxH)||11.8 in x 15.7 in x 4.25 in (300 mm x 400 mm x 108 mm)|
|Material||Stainless Steel V2A (AISI 304)|
|Protection Rating||IP68; IP69k|
|Readability (Certified)||0.02 lb (20 g)|
|Repeatability||0.01 lb (5 g)|
|Dimensions (HxLxW)||4.25 in x 11.8 in x 15.7 in (108 mm x 300 mm x 400 mm)|
|Repeatability (typical)||0.0016 lb|
|Repeatability (typical)||2.1 g|
|Weighing Pan Dimensions (HxLxW)||2.24 in x 11.8 in x 15.7 in (57 mm x 300 mm x 400 mm)|
|Cable||9.9 ft (3 m)|
|Linearity (typical)||0.02 lb|
|Linearity||0.02 lb (20 g)|
|Linearity, typically||20 g|
|Maximum Capacity||50 kg|
|Platform Type||Bench Platforms|
|Readability (Certified)||10 g|
