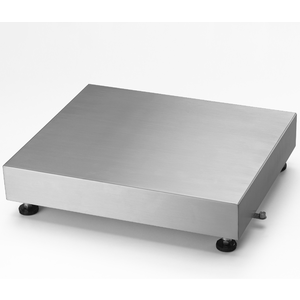

Weighing Platform PBA429-A15

For Demanding Applications.

High Durability

The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).

Easy to Clean

The open and sturdy platform design is built according to hygienic standards and allows fast, thorough and easy cleaning.

Damage Protected

Optimally placed and specific adjusted overload stops grant the best possible protection against load cell damaging.

Specifications - Weighing Platform PBA429-A15
Maximum Capacity 25 lb (15 kg)
Readability 0.002 lb (1 g)
Repeatability (sd) 0.0009 lb (0.4 g)
Platform Size (LxW) 9.5 in x 11.8 in (240 mm x 300 mm)
Material Stainless Steel V2A (AISI 304)
Protection Rating IP68; IP69k
Hazardous Approval No
Readability (Certified) 0.005 lb (5 g)
Repeatability 0.002 lb (1 g)
Cable 9.9 ft (3 m)
Resolution 0.005 lb (5 g)
Hygenic Design No
Linearity (typical) 0.005 lb
Linearity 0.005 lb (5 g)
Linearity, typically 5 g
Maximum Capacity 10 kg
Platform Type Bench Platforms
Readability (Certified) 2 g
Scale Interface Analog
Material Number(s) 71211149
