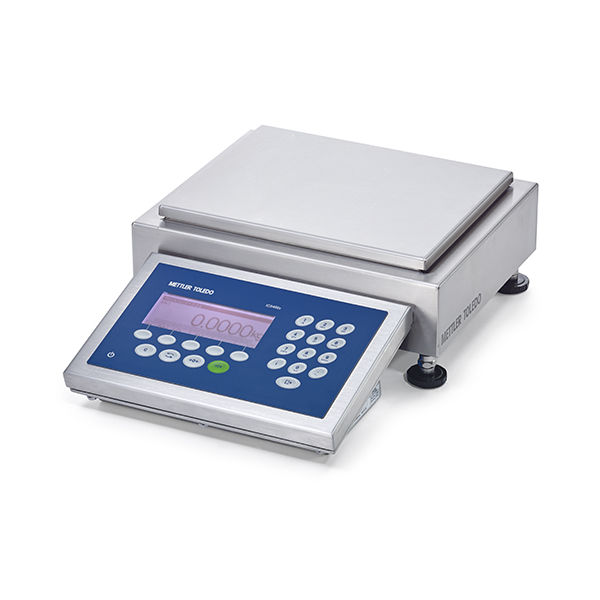

Combi Bench Scale ICS466xd-A6

Be compact in hazardous areas. The ICS4_6x-Series combi bench scales for Category 2 / DIV1 are the perfect choice for manual weighing processes that require the highest precision.

Full Protection

The intrinsically safe design ensures a high level of safety in combination with the latest hazardous area requirements for Category 2 / DIV1.

Highest Accuracy

When tolerances are tight, these scales deliver precision of up to 750,000d to ensure accurate results without compromising safety.

User Friendly Design

An intuitive operating system offers easy and secure use for even the most complex weighing applications in hazardous areas.

Specifications - Combi Bench Scale ICS466xd-A6
Maximum Capacity 12 lb (6 kg)
Readability 0.00002 lb (0.01 g)
Readability (Certified) 0.0005 lb (0.2 g)
Platform Size (LxWxH) 14 in x 11 in x 5.3 in (345 mm x 275 mm x 135 mm)
Material Stainless Steel V2A (AISI 304)
Hazardous Approval ATEX Cat. 2GD; FM Div 1
Protection Rating IP66; IP68
Application Software Counting; ; ; Simple weighing
Repeatability (sd) 0.00001 lb (0.005 g)
Repeatability (typical) 0.00001 lb
Repeatability 0.00002 lb (0.01 g)
Repeatability (typical) 0.005 g
Applications Counting; Dynamic weighing; Over Under Checkweighing; Simple Weighing
Data Interface Serial
Dimensions/Platform Size </=400 mm; from 6.3" to 15.7"
Environment Wet & Harsh Wet (</=IP66)
Hazardous Area ATEX for Zone 1/21; FM Div. 1
Legal for Trade NTEP; OIML
Display Mounting Flexibility Desk, Wall, Column, Front
Interfaces (Optional) RS422; RS485
Scale Interface SICSpro
Voltage 120VAC; 230VAC
Hygenic Design Yes
Maximum Capacity 6 kg
Platform Type Bench Platforms
Readability (Certified) 0.2 g
Material Number(s) 22201466



ICS466x and ICS426x Bench Scale Installation Manual
The explosion-protected weighing system may only be installed according to this Installation manual and the Control Drawing 22026630 on Pages 18 and...
ICS466x User Manual
If the ICS466x weighing terminal is used in hazardous areas, special care must be taken.

Product Documentation

ICS466x and ICS426x Quick Guide
Comply with all national regulations for operation in hazardous areas, as well as the instructions and information in this Quick guide.
