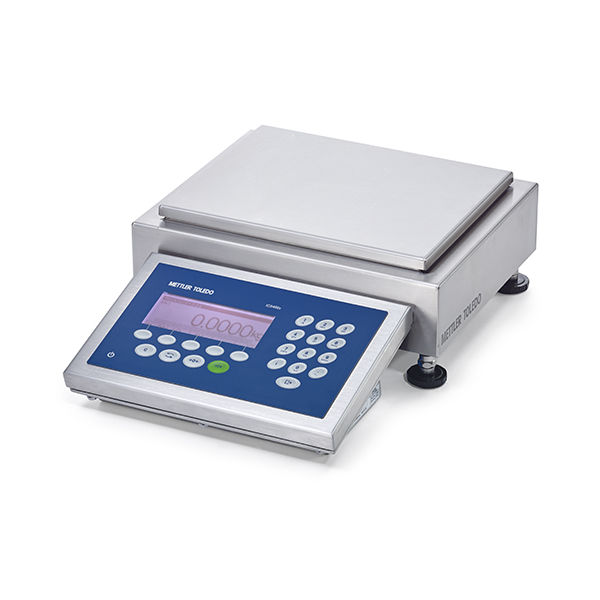

Combi Bench Scale ICS466xd-A3
Be compact in hazardous areas. The ICS4_6x-Series combi bench scales for Category 2 / DIV1 are the perfect choice for manual weighing processes that require the highest precision.
The intrinsically safe design ensures a high level of safety in combination with the latest hazardous area requirements for Category 2 / DIV1.
When tolerances are tight, these scales deliver precision of up to 750,000d to ensure accurate results without compromising safety.
User Friendly Design
An intuitive operating system offers easy and secure use for even the most complex weighing applications in hazardous areas.
|Maximum Capacity||6 lb (3 kg)|
|Readability||0.00001 lb (0.005 g)|
|Readability (Certified)||0.0002 lb (0.1 g)|
|Platform Size (LxWxH)||14 in x 11 in x 5.3 in (345 mm x 275 mm x 135 mm)|
|Material||Stainless Steel V2A (AISI 304)|
|Hazardous Approval||ATEX Cat. 2GD; FM Div 1|
|Protection Rating||IP66; IP68|
|Legal for Trade||OIML|
|Repeatability (sd)||0.00001 lb (0.005 g)|
|Repeatability (typical)||0.00001 lb|
|Repeatability||0.0002 lb (0.007 g)|
|Repeatability (typical)||0.005 g|
|Display Mounting Flexibility||Desk, Wall, Column, Front|
|Interfaces (Optional)||RS422; RS485|
|Environment||Wet & Harsh Wet (>/=IP66)|
|Applications||Over Under Checkweighing; Counting / Counting Applications; Thermal Values; Simple Weighing / Basic Weighing|
|Maximum Capacity||3 kg|
|Platform Type||Bench Platforms|
|Readability (Certified)||0.1 g|
