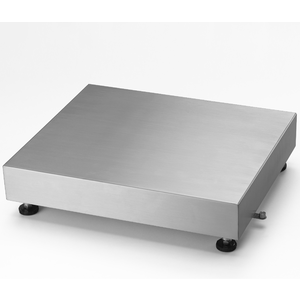

Weighing Platform PBA429X-B30H - Discontinued Product
For Demanding Applications.
High Durability
The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).
Easy to Clean
The open and sturdy platform design, built according to hygienic standards, allowing fast, thorough and easy cleaning.
Hazardous Area Approved
This platform is suitable for ATEX zone 1/21, the load cell is approved according FM Class I, II, III, Division 1 and it features a hygienic kit.
Material No.: 72237294
Discontinued since: Jun, 2022
Call for Quote Replaced with: Weighing Platform PBA439-B30
Built for Wet and Humid Environments.The PBA439 stainless steel platform is a robust, durable and economical solution for a wide range of weighing tasks with heavy washdown requirements.
Accuracy Protection
Optimally placed and independently adjusted overload stops ensure the best possible protection against load cell damage.
High Durability
The electropolished, fully stainless steel construction is designed to withstand harsh environments to ensure equipment reliability and longevity.
Hazardous Area Approved
The PBA439 platform series is also available with global EX approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.
Documentation - Weighing Platform PBA429X-B30H
Accessories - Weighing Platform PBA429X-B30H
Consumables - Weighing Platform PBA429X-B30H
Specifications- Weighing Platform PBA429X-B30H
| Maximum Capacity | 50 lb (30 kg) |
| Readability | 0.005 lb (2 g) |
| Readability (Certified) | 0.01 lb (10 g) |
| Repeatability(sd) | 0.0016 lb (0.7 g) |
| Platform Size (LxHxW) | 15.7 in x 5.29 in x 19.7 in (400 mm x 134.5 mm x 500 mm) |
| Hazardous Approval | FM Class I, Div. 1; ATEX Cat. 2GD |
| Material | Stainless Steel V2A (AISI 304) |
| Scale Interface | Analog |
| Cable | 9.9 ft (3 m) |
| Repeatability | 2 g |
| Repeatability, typical | 0.7 g |
| Repeatability (typical) | 0.0016 lb |
| Protection Rating | IP69k; IP68 |
| Dimensions (LxHxW) | 15.7 in x 5.29 in x 19.7 in (400 mm x 134.5 mm x 500 mm) |
| Weighing Pan Dimensions (LxHxW) | 15.7 in x 3.23 in x 19.7 in (400 mm x 82 mm x 500 mm) |
| Linearity, typical | 10 g |
| Linearity (typical) | 0.01 lb |
| Linearity | 0.01 lb (10 g) |
| Environment | Wet & Harsh Wet (>/=IP66) |
| Dimensions/Platform Size | from 15.8" to 19.7"; from 401 to 500 mm |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Zone 1/21; Division 1 |
| Hygienic Design | No |
| Platform Type | Bench Platforms |
| Material Number(s) | 72237294 |
