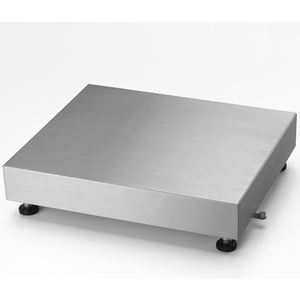

Weighing Platform PBA429X-A6H - Discontinued Product
For Demanding Applications.
High Durability
The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).
Easy to Clean
The open and sturdy platform design, built according to hygienic standards, allowing fast, thorough and easy cleaning.
Hazardous Area Approved
This platform is suitable for ATEX zone 1/21, the load cell is approved according FM Class I, II, III, Division 1 and it features a hygienic kit.
Material No.: 72237288
Discontinued since: Jun, 2022
Call for Quote Replaced with: Weighing Platform PBA439-A6
Built for Wet and Humid Environments.The PBA439 stainless steel platform is a robust, durable and economical solution for a wide range of weighing tasks with heavy washdown requirements.
Accuracy Protection
Optimally placed and independently adjusted overload stops ensure the best possible protection against load cell damage.
High Durability
The electropolished, fully stainless steel construction is designed to withstand harsh environments to ensure equipment reliability and longevity.
Hazardous Area Approved
The PBA439 platform series is also available with global EX approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.
Documentation - Weighing Platform PBA429X-A6H
Accessories - Weighing Platform PBA429X-A6H
Consumables - Weighing Platform PBA429X-A6H
Specifications- Weighing Platform PBA429X-A6H
| Maximum Capacity | 10 lb (6 kg) |
| Readability | 0.001 lb (0.5 g) |
| Readability (Certified) | 0.002 lb (2 g) |
| Repeatability(sd) | 0.00044 lb (0.2 g) |
| Platform Size (LxHxW) | 9.5 in x 3.81 in x 11.8 in (240 mm x 97 mm x 300 mm) |
| Hazardous Approval | FM Class I, Div. 1; ATEX Cat. 2GD |
| Material | Stainless Steel V2A (AISI 304) |
| Scale Interface | Analog |
| Cable | 9.9 ft (3 m) |
| Repeatability | 0.5 g |
| Repeatability, typical | 0.2 g |
| Repeatability (typical) | 0.00044 lb |
| Protection Rating | IP69k; IP68 |
| Dimensions (LxHxW) | 9.5 in x 3.81 in x 11.8 in (240 mm x 97 mm x 300 mm) |
| Weighing Pan Dimensions (LxHxW) | 9.5 in x 2.2 in x 11.8 in (240 mm x 56 mm x 300 mm) |
| Linearity | 0.002 lb (2 g) |
| Environment | Wet & Harsh Wet (>/=IP66) |
| Dimensions/Platform Size | </=400 mm; from 6.3" to 15.7" |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Zone 1/21; Division 1 |
| Hygienic Design | No |
| Platform Type | Bench Platforms |
| Material Number(s) | 72237288 |
