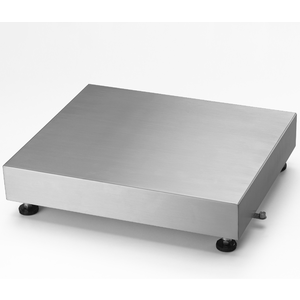

Weighing Platform PBA426X-QB15 - Overview - METTLER TOLEDO

Weighing Platform PBA426X-QB15 - Discontinued Product

For Challenging Applications.

High Durability

The rugged, full stainless steel frame & load cell ensures a long life time also when used in harsh & wet environments (IP65/IP67).

Easy to Clean

The open and sturdy platform design, built according to hygienic standards, allowing fast, thorough and easy cleaning.

Hazardous Area Approved

This platform is suitable for ATEX zone 1/21, the load cell is approved according FM Class I, II, III, Division 1

Material No.: 64088213

Discontinued since: Jun, 2022

Call for Quote

Replaced with: Weighing Platform PBA439-QB15

Built for Wet and Humid Environments.The PBA439 stainless steel platform is a robust, durable and economical solution for a wide range of weighing tasks with heavy washdown requirements.

Accuracy Protection

Optimally placed and independently adjusted overload stops ensure the best possible protection against load cell damage.

High Durability

The electropolished, fully stainless steel construction is designed to withstand harsh environments to ensure equipment reliability and longevity.

Hazardous Area Approved

The PBA439 platform series is also available with global EX approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.

Accessories - Weighing Platform PBA426X-QB15

Consumables - Weighing Platform PBA426X-QB15

Specifications- Weighing Platform PBA426X-QB15

Specifications - Weighing Platform PBA426X-QB15
Maximum Capacity
25 lb (15 kg)
Readability
0.005 lb (0.5 g)
Readability (Certified)
0.005 lb (0.5 g)
Repeatability(sd)
0.0009 lb (0.4 g)
Platform Size (LxHxW)
12 in x 3.81 in x 12 in (305 mm x 97 mm x 305 mm)
Hazardous Approval
ATEX Cat. 2GD; FM Div 1
Material
Stainless Steel V2A (AISI 304)
Scale Interface
Analog
Cable
9.9 ft (3 m)
Scale
Analog
Repeatability
0.5 g
Repeatability, typical
0.4 g
Repeatability (typical)
0.0009 lb
Protection Rating
IP65; IP67
Weighing Pan Dimensions (LxHxW)
12 in x 2.24 in x 12 in (305 mm x 57 mm x 305 mm)
Linearity, typical
5 g
Linearity (typical)
0.005 lb
Dimensions (LxHxW)
12 in x 3.81 in x 12 in (305 mm x 97 mm x 305 mm)
Linearity
0.005 lb (5 g)
Environment
Dusty & Light Wet (IP65)
Dimensions/Platform Size
</=400 mm; from 6.3" to 15.7"
Legal for Trade
NTEP; OIML
Hazardous Area
Zone 1/21; Division 1
Hygienic Design
No
Platform Type
Ex Bench Platforms
Material Number(s)
64088213
