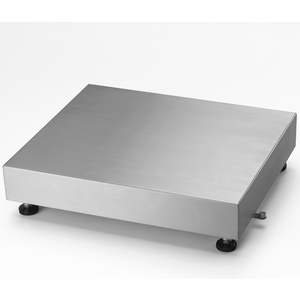

Weighing Platform PBA426-QB15H - Discontinued Product
For Challenging Applications.
The rugged, full stainless steel frame & load cell ensures a long life time also when used in harsh & wet environments (IP65/IP67).
Easy to Clean
The open and sturdy platform design is built according to hygienic standards and allows fast, thorough and easy cleaning.
To easily reduce on site-contamination, this platform features a hygienic-kit, containing specially designed leveling kits and overload stops.
Material No.: 72245580
Discontinued since: Jun, 2022
Built for Wet and Humid Environments.The PBA439 stainless steel platform is a robust, durable and economical solution for a wide range of weighing tasks with heavy washdown requirements.
Optimally placed and independently adjusted overload stops ensure the best possible protection against load cell damage.
The electropolished, fully stainless steel construction is designed to withstand harsh environments to ensure equipment reliability and longevity.
Hazardous Area Approved
The PBA439 platform series is also available with global EX approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.
Documentation - Weighing Platform PBA426-QB15H
Accessories - Weighing Platform PBA426-QB15H
Consumables - Weighing Platform PBA426-QB15H
Specifications- Weighing Platform PBA426-QB15H
| Maximum Capacity||25 lb (15 kg)|
| Readability||0.002 lb (1 g)|
| Repeatability(sd)||0.0009 lb (0.4 g)|
| Platform Size (LxHxW)||12 in x 4.25 in x 12 in (305 mm x 108 mm x 305 mm)|
| Material||Stainless Steel V2A (AISI 304)|
| Protection Rating||IP65; IP67|
| Scale Interface||Analog|
| Hazardous Approval||No|
| Readability (Certified)||0.005 lb (5 g)|
| Repeatability||1 g|
| Repeatability, typical||0.4 g|
| Repeatability (typical)||0.0009 lb|
| Dimensions (LxHxW)||12 in x 4.25 in x 12 in (305 mm x 108 mm x 305 mm)|
| Weighing Pan Dimensions (LxHxW)||12 in x 2.24 in x 12 in (305 mm x 57 mm x 305 mm)|
| Cable||9.9 ft (3 m)|
| Environment||Dusty & Light Wet (IP65)|
| Dimensions/Platform Size||</=400 mm; from 6.3" to 15.7"|
| Legal for Trade||NTEP; OIML|
| Hazardous Area||Non-hazardous area|
| Hygienic Design||No|
| Linearity, typical||5 g|
| Linearity (typical)||0.005 lb|
| Linearity||0.005 lb (5 g)|
| Platform Type||Bench Platforms|
| Material Number(s)||72245580|
