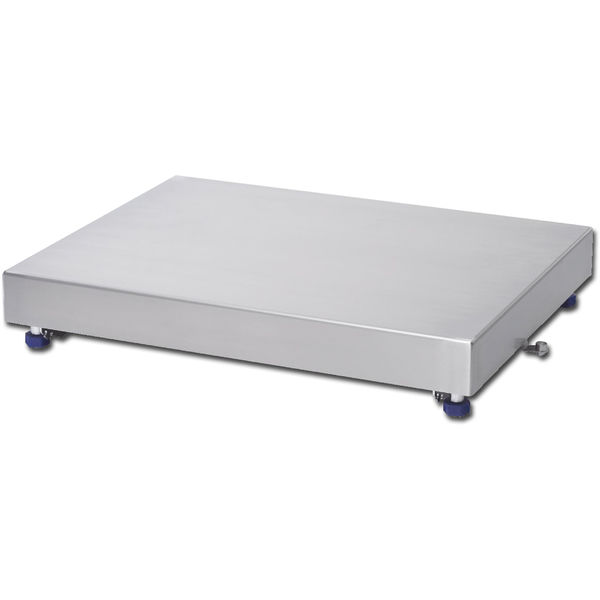

PBA430X-QC150 - Discontinued Product
The Bench Scale for Harsh Environments.
When Cleanliness Counts
The PBA430x is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 1/21.
The Surface Shows the Quality
The surface of the platform is e-polished (except 600x800mm) - there is no place for dirt to stick. The smooth load plate is easy to clean.
Hermetically Sealed
The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning.
Material No.: 22008756
Discontinued since: Jun, 2022
Call for Quote Documentation - PBA430X-QC150
Accessories - PBA430X-QC150
Consumables - PBA430X-QC150
Specifications- PBA430X-QC150
Specifications - PBA430X-QC150
| Maximum Capacity | 250 lb (60 kg/150 kg) |
| Readability | 0.01 lb (5 g) |
| Readability (Certified) | 0.05 lb (20 g; 50 g) |
| Repeatability(sd) | 0.0044 lb (2 g) |
| Platform Size (LxHxW) | 18 in x 3.9 in x 18 in (457 mm x 100 mm x 457 mm) |
| Hazardous Approval | ATEX Cat. 2GD; FM Class I,II,III/Div 1 |
| Material | Stainless Steel V2A (AISI 304) |
| Scale Interface | Analog |
| Repeatability | 5 g |
| Repeatability, typical | 2 g |
| Dimensions (LxW) | 300 mm x 400 mm |
| Repeatability (typical) | 0.0044 lb |
| Protection Rating | IP69k; IP68 |
| Weighing Pan Dimensions | 11.8 in |
| Environment | Wet & Harsh Wet (>/=IP66) |
| Dimensions/Platform Size | from 15.8" to 19.7"; from 401 to 500 mm |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Zone 1/21; Division 1 |
| Hygienic Design | Yes |
| Platform Type | Bench Platforms |
| Material Number(s) | 22008756 |
