PBA430X-QB30 - Overview - METTLER TOLEDO

PBA430X-QB30 - Discontinued Product

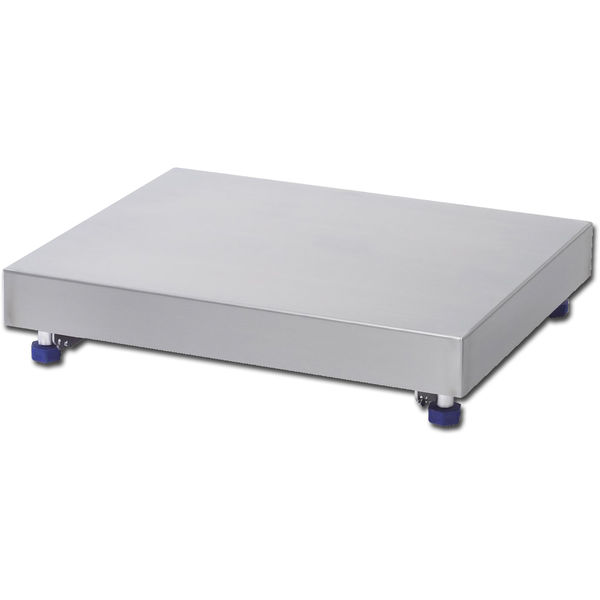

The Bench Scale for Harsh Environments.

When Cleanliness Counts

The PBA430x is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 1/21.

The Surface Shows the Quality

The surface of the platform is e-polished (except 600x800mm) - there is no place for dirt to stick. The smooth load plate is easy to clean.

Hermetically Sealed

The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning.

Material No.: 22008753

Discontinued since: Jun, 2022

Call for Quote

Replaced with: Weighing Platform PBA639-QB30

Cleaning and Compliance Made Easy.The PBA639 stainless-steel weighing platform strictly adheres to hygienic design guidelines, facilitates quick and easy cleaning and meets higher accuracy standards to optimize processes and reduce costs in regulated hygienic environments.

No Cavities or Crevices

The elimination of open threads, cavities and dead spots helps to prevent contamination by giving bacteria nowhere to hide.

Hazardous Area Approved

The PBA639 platform series is also available with global Ex approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.

Fully Protected Load Cell

This stainless-steel, hermetically sealed load cell withstands harsh and wet environments with IP68 and IP69k protection.

Documentation - PBA430X-QB30

Product Brochures

Accessories - PBA430X-QB30

Consumables - PBA430X-QB30

Specifications- PBA430X-QB30

Specifications - PBA430X-QB30
Maximum Capacity
50 lb (15 kg/30 kg)
Readability
0.002 lb (1 g)
Readability (Certified)
0.01 lb (5 g; 10 g)
Repeatability(sd)
0.00044 lb (0.2 g)
Platform Size (LxHxW)
12 in x 3.8 in x 12 in (305 mm x 97 mm x 305 mm)
Hazardous Approval
ATEX Cat. 2GD; FM Class I,II,III/Div 1
Material
Stainless Steel V2A (AISI 304)
Scale Interface
Analog
Repeatability
1 g
Repeatability, typical
0.2 g
Dimensions (LxW)
400 mm x 500 mm
Repeatability (typical)
0.00044 lb
Protection Rating
IP69k; IP68
Weighing Pan Dimensions
15.7 in
Environment
Wet & Harsh Wet (>/=IP66)
Dimensions/Platform Size
</=400 mm; from 6.3" to 15.7"
Legal for Trade
NTEP; OIML
Hazardous Area
Zone 1/21; Division 1
Hygienic Design
Yes
Platform Type
Bench Platforms
Material Number(s)
22008753
