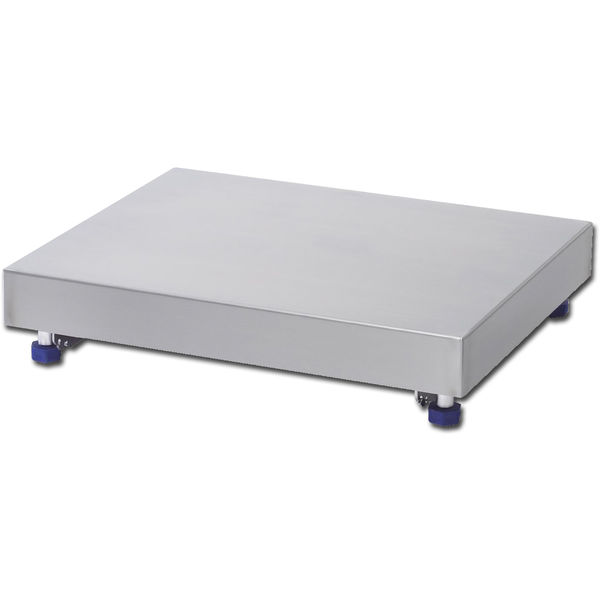

PBA430X-B30 - Discontinued Product
The Bench Scale for Harsh Environments.
When Cleanliness Counts
The PBA430x is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 1/21.
The Surface Shows the Quality
The surface of the platform is e-polished (except 600x800mm) - there is no place for dirt to stick. The smooth load plate is easy to clean.
The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning.
Material No.: 22010277
Discontinued since: Jun, 2022
Cleaning and Compliance Made Easy.The PBA639 stainless-steel weighing platform strictly adheres to hygienic design guidelines, facilitates quick and easy cleaning and meets higher accuracy standards to optimize processes and reduce costs in regulated hygienic environments.
No Cavities or Crevices
The elimination of open threads, cavities and dead spots helps to prevent contamination by giving bacteria nowhere to hide.
Hazardous Area Approved
The PBA639 platform series is also available with global Ex approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.
Fully Protected Load Cell
This stainless-steel, hermetically sealed load cell withstands harsh and wet environments with IP68 and IP69k protection.
Documentation - PBA430X-B30
Accessories - PBA430X-B30
Consumables - PBA430X-B30
| Maximum Capacity||50 lb (15 kg/30 kg)|
| Readability||0.002 lb (1 g)|
| Readability (Certified)||0.01 lb (5 g; 10 g)|
| Repeatability(sd)||0.00044 lb (0.2 g)|
| Platform Size (LxHxW)||15.7 in x 3.9 in x 19.7 in (400 mm x 100 mm x 500 mm)|
| Hazardous Approval||ATEX Cat. 2GD; FM Class I,II,III/Div 1|
| Material||Stainless Steel V2A (AISI 304)|
| Scale Interface||Analog|
| Cable||8.2 ft (2.5 m)|
| Repeatability||1 g|
| Repeatability, typical||0.2 g|
| Dimensions (LxW)||400 mm x 500 mm|
| Repeatability (typical)||0.00044 lb|
| Protection Rating||IP69k; IP68|
| Weighing Pan Dimensions||15.7 in|
| Environment||Wet & Harsh Wet (>/=IP66)|
| Dimensions/Platform Size||from 15.8" to 19.7"; from 401 to 500 mm|
| Legal for Trade||NTEP; OIML|
| Hazardous Area||Zone 1/21; Division 1|
| Hygienic Design||Yes|
| Platform Type||Bench Platforms|
| Material Number(s)||22010277|
