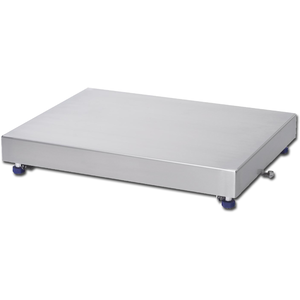

Bench Scale PBA430-QC150 - Discontinued Product
The Bench Scale for Harsh Environments.Bench scale
When Cleanliness Counts
The PBA430 is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 2/22.
The Surface Shows the Quality
The platform surface is electro-polished (except 600x800mm) providing more thorough cleaning and reduced risk of contamination or cross-contamination. The load plate is dishwasher safe.
Hermetically Sealed
The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning. Even the harshest environments cannot damage this stainless steel load cell.
Material No.: 22008762
Discontinued since: Jun, 2022
Documentation - Bench Scale PBA430-QC150
Accessories - Bench Scale PBA430-QC150
Consumables - Bench Scale PBA430-QC150
Specifications- Bench Scale PBA430-QC150
Specifications - Bench Scale PBA430-QC150
| Maximum Capacity | 250 lb (60 kg/150 kg) |
| Readability | 0.01 lb (5 g) |
| Repeatability(sd) | 0.0044 lb (2 g) |
| Platform Size (LxHxW) | 18 in x 3.9 in x 18 in (457 mm x 100 mm x 457 mm) |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP69k; IP68 |
| Scale Interface | Analog |
| Hazardous Approval | ATEX Cat. 3GD (analog); Safe area only! (SICSpro) |
| Resolution | 0.05 lb |
| Readability (Certified) | 0.01 lb (20 g; 50 g) |
| Repeatability | 5 g |
| Repeatability, typical | 2 g |
| Repeatability (typical) | 0.0044 lb |
| Cable | 8.2 ft (2.5 m) |
| Environment | Wet & Harsh Wet (>/=IP66) |
| Dimensions/Platform Size | from 15.8" to 19.7"; from 401 to 500 mm |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Non-hazardous area; Zone 2/22 |
| Hygienic Design | Yes |
| Platform Type | Bench Platforms |
| Material Number(s) | 22008762 |
