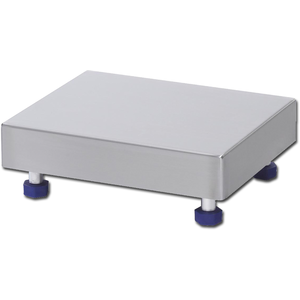

Bench Scale PBA430-QA6 - Discontinued Product
The Bench Scale for Harsh Environments.Bench scale
When Cleanliness Counts
The PBA430 is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 2/22.
The Surface Shows the Quality
The platform surface is electro-polished (except 600x800mm) providing more thorough cleaning and reduced risk of contamination or cross-contamination. The load plate is dishwasher safe.
Hermetically Sealed
The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning. Even the harshest environments cannot damage this stainless steel load cell.
Material No.: 22008757

Discontinued since: Jun, 2022
Replaced with: Weighing Platform PBA639-QA6
Cleaning and Compliance Made Easy.The PBA639 stainless-steel weighing platform strictly adheres to hygienic design guidelines, facilitates quick and easy cleaning and meets higher accuracy standards to optimize processes and reduce costs in regulated hygienic environments.
No Cavities or Crevices
The elimination of open threads, cavities and dead spots helps to prevent contamination by giving bacteria nowhere to hide.
Hazardous Area Approved
The PBA639 platform series is also available with global Ex approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.
Fully Protected Load Cell
This stainless-steel, hermetically sealed load cell withstands harsh and wet environments with IP68 and IP69k protection.
Documentation - Bench Scale PBA430-QA6
Accessories - Bench Scale PBA430-QA6
Consumables - Bench Scale PBA430-QA6
Specifications- Bench Scale PBA430-QA6
Maximum Capacity | 10 lb (3 kg/6 kg) |
Readability | 0.0005 lb (0.2 g) |
Repeatability(sd) | 0.00017 lb (0.08 g) |
Platform Size (LxHxW) | 9 in x 3.7 in x 9 in (229 mm x 95 mm x 229 mm) |
Material | Stainless Steel V2A (AISI 304) |
Protection Rating | IP69k; IP68 |
Scale Interface | Analog |
Hazardous Approval | ATEX Cat. 3GD (analog); Safe area only! (SICSpro) |
Resolution | 0.002 lb |
Readability (Certified) | 0.002 lb (1 g; 2 g) |
Repeatability | 0.2 g |
Repeatability, typical | 0.08 g |
Repeatability (typical) | 0.00017 lb |
Cable | 3.3 ft (1 m) |
Environment | Wet & Harsh Wet (>/=IP66) |
Dimensions/Platform Size | </=400 mm; from 6.3" to 15.7" |
Legal for Trade | NTEP; OIML |
Hazardous Area | Non-hazardous area; Zone 2/22 |
Hygienic Design | Yes |
Platform Type | Bench Platforms |
Material Number(s) | 22008757 |
