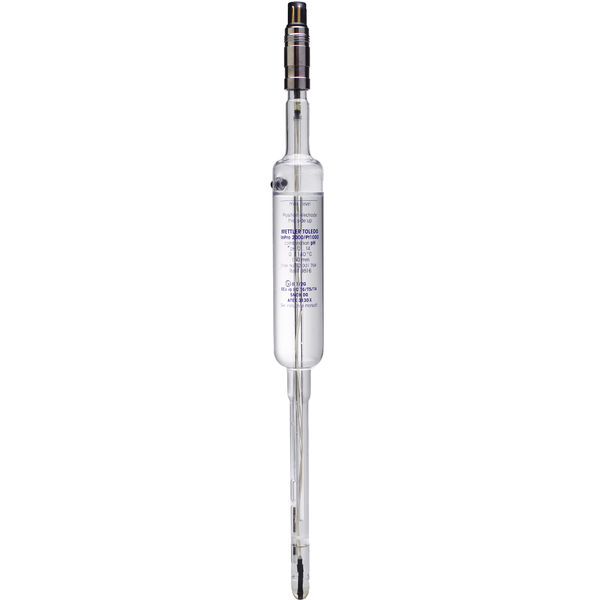

InPro 2000 120/PT100/9823 Refillable Analog pH Sensor

pH Sensor InPro 2000 120/PT100/9823

Refillable pH Probe with KCl Electrolyte

The InPro 2000 120/PT100/9823 is a refillable analog pH probe with an integrated PT100 temperature sensor for demanding applications. This 120 mm refillable pH sensor with 3M KCl electrolyte is a reliable pH measurement solution.

For Use in Extreme Conditions
The InPro 2000 120/PT100/9823 uses a pressurizable reference electrolyte to ensure measurement stability and low maintenance in harsh applications.

Refillable Sensor with Long Lifetime
This pH sensor uses a refillable 3M KCl electrolyte to ensure reliable results over a long lifetime and improved junction cleaning.

Watertight connection
The IP 68 watertight cable connection provides excellent signal transmission in all environments.

pH Sensor InPro 2000 120/PT100/9823
◄Predchádzajúci produkt
Plniteľné sondy pH a sondy Redox
Ďalší produkt►
Technické parametre - pH Sensor InPro 2000 120/PT100/9823
Analógové alebo ISM senzory Analog
Parametre merania pH
Typ sklenenej membrány pH High Alkali glass (HA)
Jednoduchý alebo dvojitý kontakt Single Junction Refillable
Dĺžka senzoru 120 mm
Teplotný signál PT100
Typ pripojenia VP
Uzemnenie roztoku/redox kovov None
Elektrolyt 3M KCl
pH range 0-14 pH
Odolnosť voči tlaku (bar) 0 to 6 barg (in presurized housing)
Odolnosť voči tlaku (psi) 0 to 87 psig (in presurized housing)
Referenčný systém Argenthal with silver-ion trap
Sterilizovateľná Yes
Autoklávovateľná Yes
Membrána Ceramic
ATEX Certification SEV 14 ATEX 0168 X<br> Ex ia IIC T6/T5/T4/T3 Ga/Gb
FM approval IS/ I, II, III /1/ABCDEFG /T6
IECEx Certificate of Conformity IECEx SEV 14.0025X<br> Ex ia IIC T6/T5/T4/T3 Ga/Gb
Rozsah merania teplôt (imp.) 32 to 284° F
Rozsah merania teplôt (metric.) 0 to 140° C
Objednávkové číslo/čísla 52001430

Features and Benefits

Reliable in Demanding Applications
The InPro 2000 120/PT100/9823 refillable pH sensor uses a pressurizable reference electrolyte that ensures permanent self-cleaning of the diaphragm. This leads to long-term pH measurement stability and low maintenance in harsh applications.

Improved Junction Cleaning
This refillable pH sensor uses 3M KCl electrolyte. This classic electrolyte offers a high outflow for improved diaphragm cleaning. This helps to ensure a consistently reliable measurement without the need for sensor cleaning.

Meets Your Installation Requirements
The InPro 2000 120/PT100/9823 has an integrated PT100 temperature signal for reliable temperature compensation. With a 120 mm length, it is optimal when short installation lengths are needed.

Accurate, Reliable Measurement System
The InPro 2000 is designed with long-term accuracy and reliability in mind. It is sterilizable and autoclavable, has a silver-ion trap to prevent sulfide poisoning of the junction, and is ATEX and FM certified for installation in hazardous areas.
