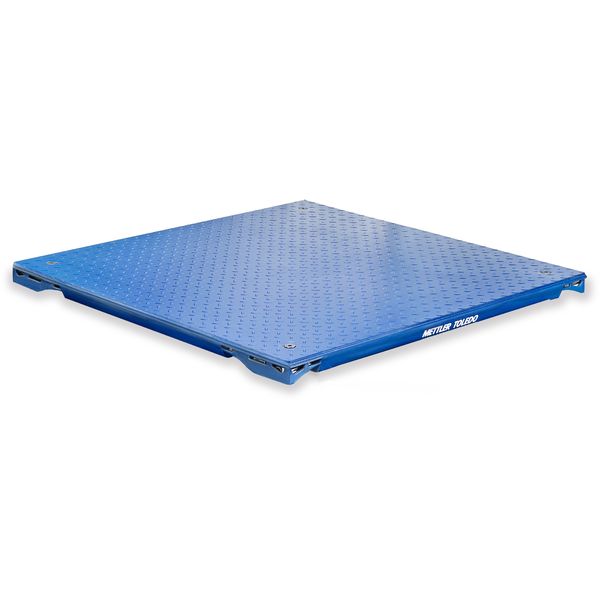

Model PFD774-ES3000 H:102mm

True Performance, Every Time!. PowerDeckTM PFD774 is a variable floor scale between 300kg 1.0m x 1.0m and 12 tons 2m x 2,5m. The floor scale is up to 2x10000e accuracy in market.

Real-Time Operator Guidance

Increase productivity by alerting operators for optimal placement of goods on the scale to guarantee repeatability. Easy, error-free operation.

Rugged and Precise

Increase yields in harsh environments. Select resolutions from 3000e up to 60,000d. The smart system monitors and compensates to ensure accuracy.

Visibility through Diagnostics

Protect your investment with real-time monitoring. Detect and track shock and overloads. Alerts prevent potential failures before they happen.

Technické parametre - Model PFD774-ES3000 H:102mm
Maximum Capacity 3,000 kg
Readability 100 g
Readability (Certified) 500 g
Repeatability 40 g
Platform Size (LxWxH) 1,500 mm x 1,500 mm x 104 mm
Material Mild Steel
Protection Rating IP68/IP69K
Dimensions (LxWxH) 1,500 mm x 1,500 mm x 102 mm
Cable 3 m
Accuracy (Class) OIML Class III
Repeatability (typical) 300 g
Linearity, typically 80 g
Platform Type Floor scale
Scale Interface POWERCELL®
Hygenic Design No
Objednávkové číslo/čísla 39800854

Dokumentácia

Brožúry

PowerDeck™ Product Brochure
Floor scales are an integral part of your business, but utilizing technology that is over 50 years old means they often are a big source of headaches...

Prospekty

PowerDeck™ Datasheet
Čo je to spoľahlivý výkon? Spoľahlivý výkon je definovaný ako „splnenie požiadavky v súlade so skutočnosťou“.
