CSN950

Recover More Revenue, Reduce Rejects. The CSN950 dimensioner measures parcels in high speed sorting environments. Providing the greatest read rates in its class, the CSN950 maximizes revenue recovery and reduces sorting errors caused by no-reads.

Industry leading read rates

Accurately measure the widest range of items for highest read rate. Where some dimensioners struggle, the CSN950 excels.

Simple system set-up

A powerful, embedded processor elimintates the need for an external PC. Data drop is fast and seamless and fewer parts reduce the risk of failure.

Designed for uptime

Design quality and service features work together to ensure uptime. Little maintenance is required and replacement is quick and easy.

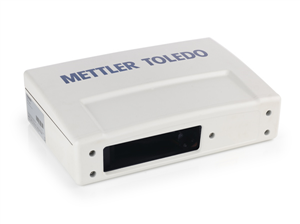

CSN950 Dimensioner


Specifications - CSN950
Maximum Object Size (L x W x H) 300 x 92 x 92 cm
Minimum Object Size (L x W x H) 5 x 5 x 2 cm
Object shape Rectangular
Maximum Belt Speed 3.3 m/s (650ft/min)
Object Spacing Singulated
Working Environment 14°F to 104°F (-10°C to 40°C)
Power Supply 24 VDC
Protection Rating IP54
Material Number(s) 556000
Trade Name EDS,Cargoscanner,Flexflow


*The specifications for CSN950 MultiHead may vary.
