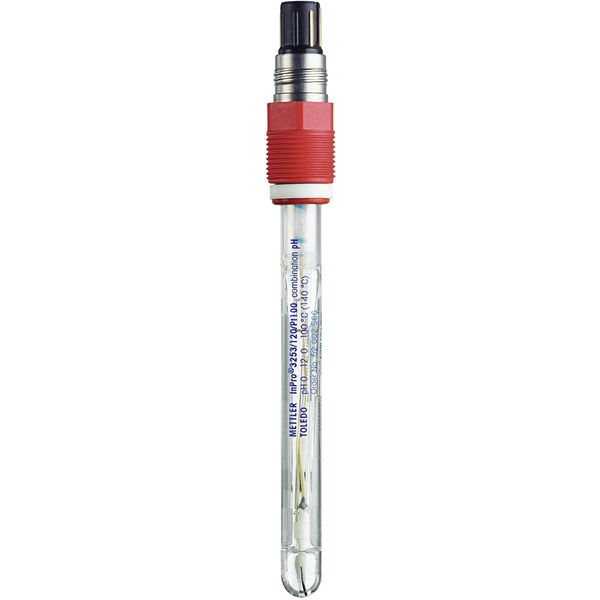

Name: pH Sensor InPro3253/250/PT100
Brand: Mettler Toledo

Optimized for Steam Sterilization

The steam-sterilizable pH glass membrane of the InPro 3253 250/PT100 makes it optimal for processes where sterilization or autoclaving are required.

Low Maintenance for Your Operation

This pH sensor is designed for low maintenance pH measurements, from dirty industrial to hygienic and sterile environments.

Sterilizable and Autoclavable

This sensor provides fast and precise pH measurement, even after repeated autoclaving and sterilization cycles.

Reliable, Accurate and Robust

The InPro 3253 250/PT100 is designed to withstand the rigors of your production. Its pre-pressurized, maintenance-free reference system ensures high reproducibility and reliable measurement performance under diverse operating conditions.

Easy Validation

The InPro 3253 250/PT100 is suited for chemical and biopharmaceutical production. Its certification covers hazardous zone use, biocompatibility of the electrolyte, and all relevant hygiene and safety regulations.

Versatile to Meet Your Application Needs

This sensor can measure pH in industrial processes and has a built-in PT100 temperature sensor. It is pressure resistant up to 4 barg (58 psig), has a watertight connector, and can withstand repeated sterilization and autoclave cycles.

Specifications - pH Sensor InPro3253/250/PT100

ISM (Digital) or Analog	Analog
pH Sensing Technology	Steam Sterilizable Glass Membrane (A41)
pH Range	0 – 12
Reference System	Pre-pressurized liquid electrolyte, ceramic diaphragm, Argenthal cartridge with silver-ion trap
Operating Temperature (Fahrenheit)	32 °F - 212 °F
Operating Temperature (Celsius)	0 °C - 100 °C
Cable Connector	VP
Process Connection	Pg 13.5 Thread
Sterilizable/Autoclavable	Yes
Sensor Length	250 mm
Certificates & Approvals	ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb CE EHEDG FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 METTLER TOLEDO Quality Certificate PED
Operating Pressure (Bar)	0 to 4 barg
Model Family	InPro3250(i)
Temperature Sensor	Pt 100
Measurement Parameter	pH
Shaft Material	Glass
Operating Pressure (PSI)	0 to 58 psig
Refillable Electrolyte	No
Hazardous Area Approvals	Yes
Primary Media/Application	Pharmaceutical/Life Science Production
Hygienic/Biocompatibility Approvals	Yes
