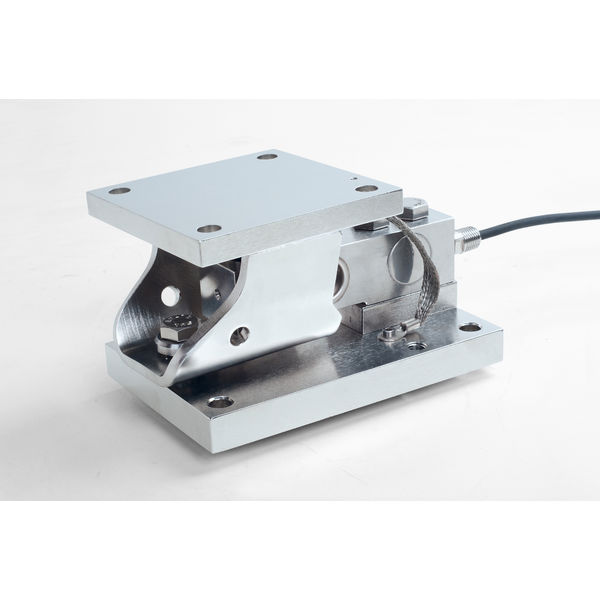

Weigh Module SWB505 CS 220KG/500LB C6
Weigh Module SWB505 MultiMount Carbon Steel 220kg/500lb C6
Material No.: 30096895
Highlights
Static & Dynamic Weighing
Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection
Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell. Peace of mind.
Ease of Installation/Service
Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.
Specifications
Specifications - Weigh Module SWB505 CS 220KG/500LB C6
| Maximum Capacity | 500 lb (220 kg) |
| Material | Carbon Steel Zinc plated steel |
| Metrology | NTEP III 10,000d OIML C6 |
| Load Cell | 0745A 5m (16.6ft) cable |
| Accuracy | High |
| Protection Rating | IP68 NEMA 6/6P |
| Environment / Material | Normal / Carbon Steel |
| Hazardous Approval | ATEX FM cFM |
| Criticality | Standard |
