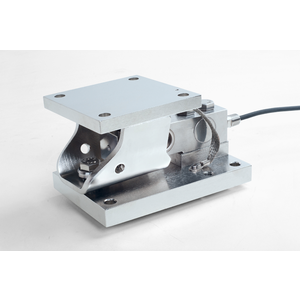

Weigh Module SWB505 316 2.2T/5K C6
Economic System Integration.Weigh Module SWB505 MultiMount Stainless Steel 316 2.2t/5k C6
Static & Dynamic Weighing
Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection
Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell. Peace of mind.
Ease of Installation/Service
Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.
Material No.: 30131910
Specifications
Specifications - Weigh Module SWB505 316 2.2T/5K C6
| Maximum Capacity | 5,000 lb (2,200 kg) |
| Material | Stainless Steel V4A (AISI 316) |
| Metrology | NTEP III 10,000d OIML C6 |
| Load Cell | 0745A 5m (16.6ft) cable |
| Accuracy | High |
| Protection Rating | IP68 NEMA 6/6P |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX FM cFM |
| Criticality | Standard |
