Weigh Mod SWC515-A CS 100t

Weigh Mod SWC515-A CS 100t

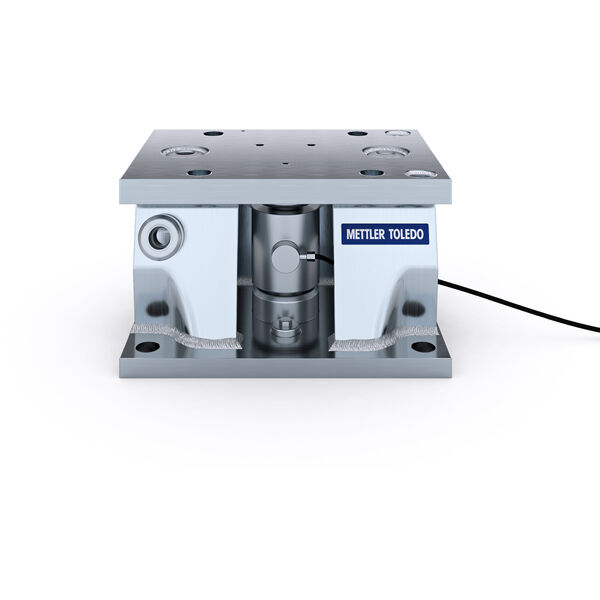

Weigh Module SWC515-A Carbon Steel 100t

Material No.: 31096960

Home Industrial Weighing Scales and Systems Weigh Modules, Load Cells, Load Sensors Compression Weigh Modules Weigh Mod SWC515-A CS 100t

Highlights

Multi Purpose – always Suitable

For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.

No Compromise on Safety

Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells bring peace of mind.

Right the First Time

Fast and straightforward installation w/o damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack.

Effortless Cleaning

The open design allows fast and easy cleaning. No blind spots remain for dust accumulation.

Specifications

Specifications - Weigh Mod SWC515-A CS 100t

Maximum Capacity
 220,000 lb (100,000 kg)
Material
 Zinc plated steel
Metrology
 NTEP III 5,000d
OIML C3
Load Cell
 0782/GD, 13 m cable
Accuracy
 Standard
Protection Rating
 IP68/69k
Environment / Material
 Normal / Carbon Steel
Hazardous Approval
 ATEX
FM
Criticality
 Standard

Documentation

Accessories

Consumables

Software

More Information

Get Your Quote
Weigh Mod SWC515-A CS 100t
Hazardous Area
FM Approved
