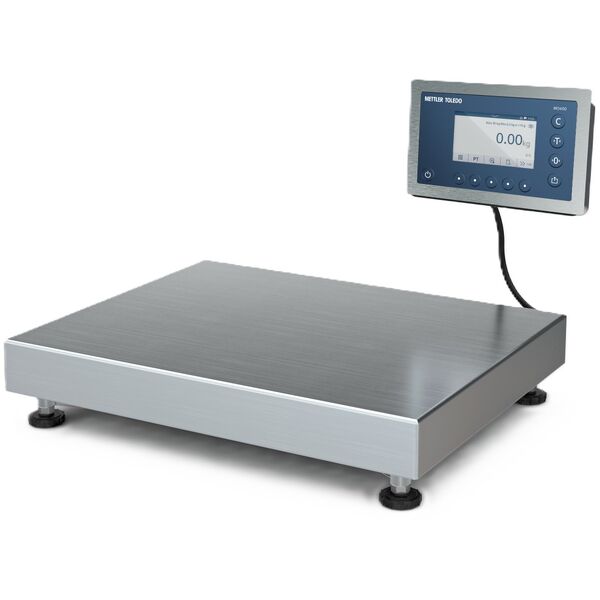

BBA439-400B30
BBA439-400 is a tailored hygienic solution for your industrial applications.
Material No.: 31001092006
Highlights
Effortless Customization and Setup
Expedite scale assembly, adjustment and approval with pre-configured pairings tailored to your needs.
Standard Hygienic Design for Cleaning
A stainless steel structure with optional leveling feet and overload stops is designed without exposed threads to prevent residue accumulation.
Certified Weighing Precision
Achieve consistent and reliable production with our precision-approved weighing system, making sure every product meets the highest quality standards.
Specifications
Specifications - BBA439-400B30
| Maximum Capacity | 50 lb (30 kg) |
| Readability | 0.005 lb (2 g) |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP68 IP69k |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 19.69 in x 3.94 in x 15.75 in (500 mm x 100.1 mm x 400 mm) |
| Display | 5" High-resolution capacitive touch graphic display |
| Interfaces | Discrete I/O Ethernet TCP/IP Modbus RTU Modbus TCP RS232 RS485 USB Device USB Host WLAN |
| Repeatability, typical | 0.6 g |
| Repeatability, (typical) | 0.0014 lb |
| Repeatability (sd) | 0.0014 lb (0.6 g) |
| Repeatability | 0.005 lb |
| Applications | Animal Weighing Classification Counting Filling Over Under Checkweighing Simple Weighing Totalizing |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Environment | Wet & Harsh Wet (≥IP66) |
| Hygienic Design | Yes |
| Cable | 8.2 ft (2.5 m) |
| Platform Type | Bench Platforms |
