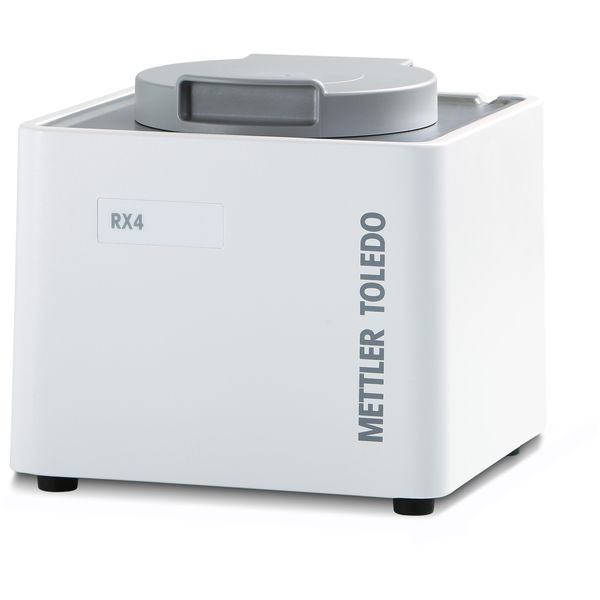

Refractive Index Cell RX4
Accurate, Intuitive, and Modular. The RX4 Refractive Index Cell can be added to an Excellence Density meter to measure density and refractive index in one go. The RX4 measures the refractive index the range from 1.32 to 1.70, with automatic temperature control from 0 to 100°C.
The RX4 can be combined with an Excellence Density Meter to a space-saving system for measuring refractive index and density simultaneously.
The system can combine more than density and refractive index, it can also be flexibly upgraded to measure pH, color, titration and more.
Automatic Temperature Control
The integrated Peltier temperature control quickly heats or cools the measuring cell, reliably maintaining the sample at the desired temperature.
|Measurement range nD||1.3200 - 1.7000|
|Accuracy nD (±)||0.0001|
|Repeatability nD (±)||5e-005|
|Measurement range Brix||0-100 % w/w|
|Accuracy Brix||0.05 %; 0.0005 % w/w|
|Temperature control range||0 °C – 100 °C|
|Temperature control accuracy (±)||0.1 °C|
|Measurement scales||Refractive Index, Sugar (Brix and more), Acid/Base, Chemical, Freezing Point, Salt, Others; Up to 30 user-defined concentration tables (can be entered as tables or formulas).|
|Dimensions (Width x Height x Depth)||226 x 193 x 208 mm|
|Dimensions (DxHxW)||226 mm x 193 mm x 208 mm|
|Repeatability Brix (% w/w)||0.05 % w/w|
