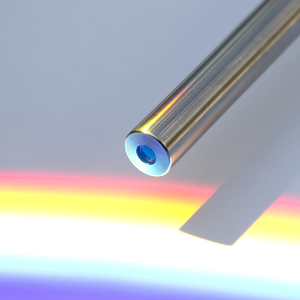

Expand Process Understanding. ReactRaman 785 with fiber probe based sampling technology.
ReactRaman combines high performance with a small, thermally stable, robust and portable design, delivering outstanding results wherever it’s needed.
Fast, Accurate Results
Optimized for in situ monitoring, ReactRaman delivers precise and sensitive process data for easy conversion to results with One Click Analytics™.
ReactRaman is part of an integrated suite of products combined across the powerful iC software platform to provide unparalleled process understanding.
|For Use In||Laboratory: EasyMax/OptiMax|
|Software||iC Raman 7|
|Base Unit Description||Laboratory base unit|
|Optical Range (Base Unit)||100cm-1 to 3200cm-1|
|Excitation Wavelength||785 nm|
|Excitation Power||Max: 400mW; Standard: <250mW|
|Detector||2-stage TE Cooled CCD|
|Base Unit Dimension||H: 77mm [3.0 in.]; W: 250mm [9.8 in.]; L: 250mm [9.8 in.]|
|Fiber Connections||FC/PC (both excitation and collection)|
|Base Unit Temperature Range –||5 °C – 35 °C|
|Laser Classification||Class IIIB laser. Compliant with 21 CFR 1040.10 and 1040.11|
|Power||100-240 VAC, 50/60Hz, 1.5A|
|Sampling Technology||Fixed or Interchangeable Probe; Flowcell [optional, compatible with interchangeable Fiber Head]|
|Probe Wetted Material||C-276, Sapphire, Gold|
|Probe Wetted Diameter||12.7mm [0.5 in.]; 9.5mm [0.375 in]|
|Probe Wetted Length||12.7mm dia: 260mm [10.25 in.]; 9.5mm dia: 248mm [9.75 in.]|
|Probe Temperature Range||-40°C to 300°C|
|Probe Pressure Rating||413 barg [6,000 psig]|
|Probe Fiber Length||1.7m [5.6ft]|
|Flowcell Wetted Materials||C-22, Sapphire, Kalrez® or Gold seal|
|Flowcell Volume||200 µL|
|Flowcell Temperature Range||Kalrez: -40°C to 250°C; Gold: -40°C to 300°C|
|Flowcell Pressure Rating||Gold: 170 barg [2,500 psig]; Kalrez: 34 barg [500 psig]|
ReactRaman was designed by spectroscopy experts to make it simple for scientists to acquire high-quality data and meaningful results. A global team is committed to ensuring scientists can solve challenging chemistry problems using this reliable instrument.
Traditionally, Raman instruments can be difficult to set up making experimental preparation a time consuming task. ReactRaman with iC Raman 7 calculates optimized data collection parameters, providing confidence that high-quality results will be collected every time.
iC Raman 7 is built on the new iC platform for reaction analysis. Designed to work with modern and evolving operating systems and to accept improved functionality over time, iC Raman 7 is the sustainable choice for chemical development laboratories.
