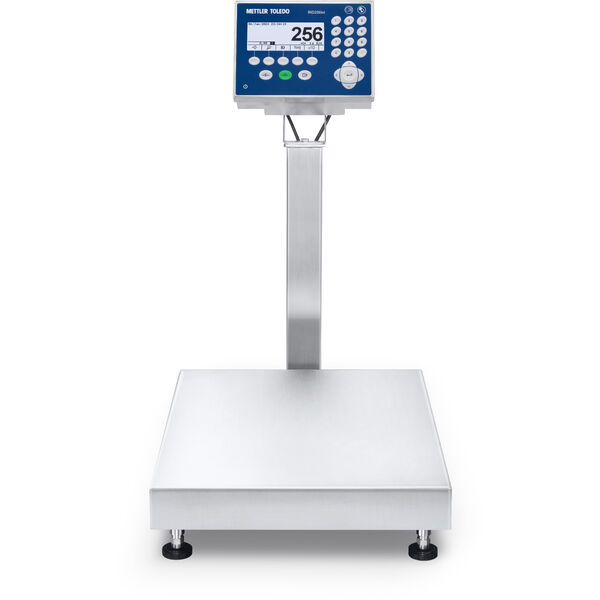

BBA256xx-439CC150

Name: BBA256xx-439CC150
Brand: Mettler Toledo

The BBA256xx is designed for Zone 2/22, Division 2, hazardous areas. It combines the IND256xx indicator with the PBA439xx stainless steel platform

Material No.: 30872117018

Certified Safety for Ex-Zone Compliance

The globally approved intrinsically safe design is suitable for Zone 2/22, Division 2, allowing for easy standardization and scalability.

Consistent Quality in Harsh Environments

Improve overall production quality with 3000e legal-for-trade weighing, simple user interface, and data traceability with alibi memory and printing.

Configurable to Your Needs

Fixed or mobile weighing in many environments makes the BBA256xx the perfect fit for many industrial applications.

IND256xx Weighing Indicator

Designed with a graphic LCD display and large digits, the IND256xx provides a clear user interface for easy daily operation. The visual ergonomics reduce training time and human errors.

PBA439xx Weighing Platform

The PBA439xx stainless-steel platform features optimally placed and independently adjusted overload stops to provide the best possible protection against load cell damage in heavy washdown environments.

Hermetically Sealed Load Cell

The advanced welded seal of the high-quality load cell makes it the perfect choice for wet and harsh applications. It not only withstands steam and high-pressure washdowns but also provides the highest reliability under the influence of moisture.

Specifications - BBA256xx-439CC150

Maximum Capacity	250 lb (150 kg)
Readability	0.02 lb (10 g)
Platform Size (LxHxW)	31.5 in x 5.05 in x 23.62 in (800 mm x 128.3 mm x 600 mm)
Material	Stainless Steel V2A (AISI 304)
Protection Rating	IP66
Hygienic Design	No
Scale Interface	Analog
Repeatability, typical	3.2 g
Repeatability, (typical)	0.0071 lb
Readability (Certified)	0.05 lb (50 g)
Applications	Simple Weighing
Data Interface	Discrete I/O Serial
Hazardous Area	Division 2 Zone 2/22
Legal for Trade	NTEP OIML
Environment	Wet & Harsh Wet (≥IP66)
Display Mounting Flexibility	Column
Voltage	Built in, 187 VAC to 250 VAC , 50/60 Hz
