Tunable Diode Laser for CO% Measurement

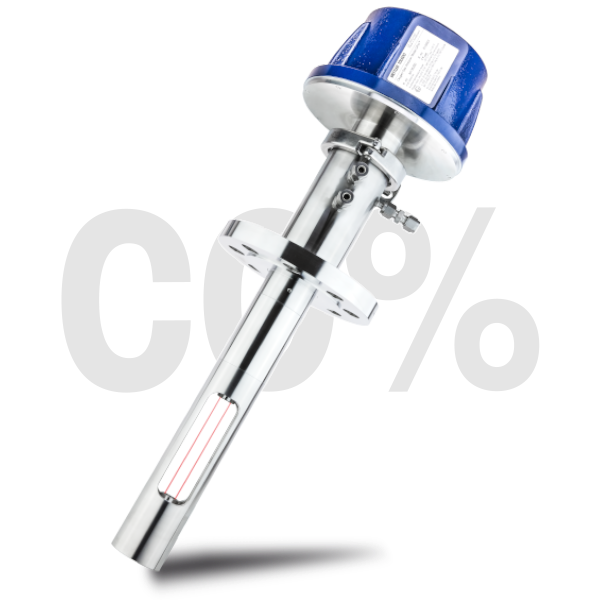

The GPro 500 carbon monoxide percent gas analyzer is a unique tunable diode laser spectrometer designed for measurement of CO in a gas stream at high temperatures. It uses a folded-path laser beam design for simple installation and CO% measurement.

Top Performance in CO% Measurement
A CO% analyzer for challenging applications, the GPro 500 provides reliable measurement in FCC units, PTA, steam reforming, and hydrogen production.

Low Maintenance and Operating Costs
This CO% gas analyzer is designed to operate at high temperatures, in situ without a conditioning system, reducing the total cost of ownership.

Easy Installation
The GPro 500 is an alignment-free TDL gas analyzer, meaning that the typical challenges of TDL installation and alignment are significantly reduced.

CO% Range Gas Analyzer: GPro 500
Call for Quote
Specifications - CO% Range Gas Analyzer: GPro 500
Gas Measured Carbon monoxide (CO%)
Lower Detection Limit 1500 ppm-v
Measurement range 0-100%
Accuracy 2% of reading or 1500 ppm, whichever is greater
Linearity Better than 1%
Resolution 1500 ppm-v
Drift Negligible (<2% of measurement range between maintenance intervals)
Sampling rate 1 second
Response time (T90) CO in N₂ 300 ppm-v to 0% in <4 seconds
Repeatability ±0.25% of reading or 0.75-v CO (whichever is greater)
Process pressure range 0.8 bar - 1.5 bar (abs)/11.6 psi - 21.7 psi (abs)
Process temperature range 0-250 °C (23-482 °F); Optional (for probe installation) 0-600 °C (0-1112 °F) with additional thermal barrier
Effective path length 50 mm - 10 m, depending on adaption
Process Adaption or Sensor Sensor
Features and Benefits

Meets Critical Application Needs
This CO% analyzer is ideal for measurement and control applications in FCC units, styrene, syngas, and ammonia manufacturing. These TDL gas analyzers offer a precise, reliable and fast measurement in critical applications, and are SIL 2 compatible.
Flexible and Consistent Platform
Immediate, In Situ Measurement
The GPro 500 CO% gas analyzer is installed in situ, so you get a quick response without the need to extract and condition a sample. This offers a reliable and cost-effective alternative to technologies that require extraction and conditioning of gases.
Fast, Intuitive Navigation
Designed for Challenging Installations
The GPro 500 is configurable, enabling the carbon monoxide range spectrometer's measurement system to be paired with a variety of process adaptions to meet a wide range of installation requirements, including pipe diameters from 50 mm to over a meter.
Plug and Measure
Predictive Diagnostics Ensure Long Life
This CO% gas analyzer uses Intelligent Sensor Management (ISM) technology to offer predictive diagnostics on analyzer condition, including informing you when cleaning of the optical path will be required.
Easy Configuration
