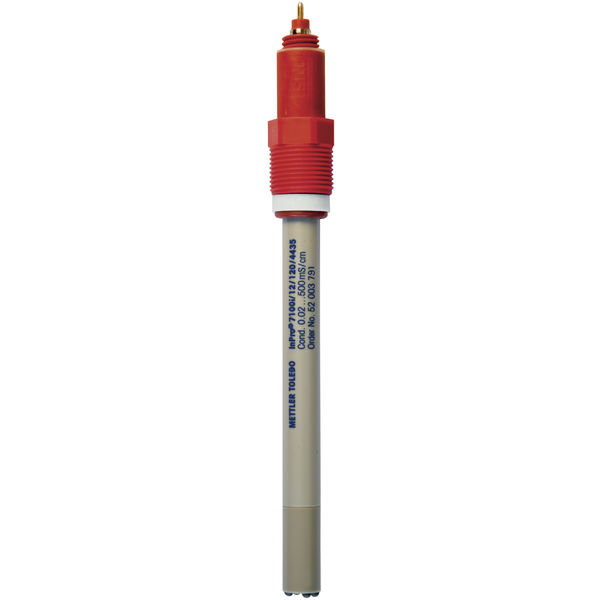

Name: Cond Sensor InPro7100i/12/225/4435
Brand: Mettler Toledo

Fast Responding Sensor

The fast response time of the InPro 7100i conductivity sensor allows quick detection of process changes, leading to better process control.

Resistant to Aggressive Media

The PEEK shaft material offers high resistance to aggressive solutions and is particularly suitable in processes with frequent CIP/SIP cycles.

Wide Measurement Range

The InPro 7100i sensor has an extended measurement range from 0.02 - 500 mS/cm, which makes it a valuable solution for a wide range of applications.

Installation into Small Pipes

WideRange technology keeps the sensor design small and makes it easy to install. This allows installation even in pipes with small diameters (DN50).

Easy Process Installation

The InPro 7100i sensor is compatible with a variety of static and retractable housings, giving the user a wide choice of installation options.

Withstands Challenging Applications

The InPro7100i conductivity sensor has a very high resistance against aggressive chemicals. This is mainly due to the PEEK sensor body material's resistivity against aggressive liquids.

Interference-Resistant Digital Signal

This sensor uses ISM technology to provide a strong digital signal for reliable measurement, even in the presence of interference. With ISM's Plug and Measure feature, pre-calibrated sensors are automatically recognized for fast sensor commissioning.

Specifications - Cond Sensor InPro7100i/12/225/4435

Temperature Sensor	30 KΩ NTC
Connection	K8S / ISM
Cable Connection	AK9
Cell Constant (nominal)	0.31 cm–1
Measurement Technology	Conductive
Process Connection	Pg 13.5
Sterilizable	Yes
Operating Temperature (Fahrenheit)	-4...302 °F
Operating Temperature (Celsius)	-20...150 °C
Sensor Diameter	12mm
Mechanical Pressure Resistance (PSI)	0 ... 290 psi at 275 °F0 ... 145 psi at 302 °F
Model Family	4-electrode sensor
Hazardous Area Approvals	Yes
Measured Pressure Resistance	0 - 145 psi @ 302 °F 0 - 290 psi @ 275 °F (0 - 10 bar @ 150 °C 0 - 20 bar @ 135 °C)
Electrode Material	316 L / 1.4435
Primary Media/Application	Chemical, pharmaceutical and F&B processes
Hygienic/Biocompatibility Approvals	No
Mechanical Pressure Resistance (Bar)	0 ...20 bar at 135 °C0 ...10 bar at 150 °C
Sensor Material	PEEK (FDA), 316L SS
System accuracy	± 5 % or better
Measurement Range	0.02…500mS/cm

Datasheets

Datasheet Conductivity Sensors InPro7100

The InPro 7100(i) series is designed for the Chemical, Pharmaceutical, Food & Beverage and Pulp & Paper industries. The PEEK (FDA) shaft material offe...

Certificates

Ex-Classification InPro 7100i Series Conductivity Sensors

NEPSI Certificate: InPro700X, 710X

Applications

Application Note: Reliable Conductivity Measurement

M200 Analytical Transmitter

Transmitter M200 1-CH ¼DIN

This one-channel, 1/4 DIN size M200 transmitter is designed for basic water and process applications. It can be integrated with pH, ORP, DO, and conductivity sensors with Intelligent Sensor Management (ISM) technology.

Material No.: 52121554

Transmitter M200 1-CH ½DIN

This one-channel, 1/2 DIN size M200 transmitter is designed for basic water and process applications. It can be integrated with pH, ORP, DO, and conductivity sensors with Intelligent Sensor Management (ISM) technology.

Material No.: 52121555

M300 Process & Water Transmitters

Transmitter M300 Process 1-CH ½DIN

This single-channel, 1/2 DIN size M300 transmitter is designed for standard process applications. It has a touchscreen interface and integrates with pH, ORP, DO, and conductivity sensors.

Material No.: 30280771

M400 Process Transmitter

Transmitter M400 Type 1

The multi-parameter M400 transmitter series features Intelligent Sensor Management (ISM) technology for measuring pH / ORP and conductivity.

Material No.: 30374111

M800 Multi-channel Transmitter

Transmitter M800 Process 1-CH

The single-channel M800 Process is a multi-parameter transmitter that provides high-performance, reliable measurement with a convenient full-color touch screen and the ability to integrate with a wide range of ISM and analog sensors.

Material No.: 30026633

Transmitter M800 Process 2-CH

The two-channel M800 Process is a multi-parameter transmitter that provides high-performance, reliable measurement with a convenient full-color touch screen and the ability to integrate with a wide range of ISM sensors.

Material No.: 52121813
