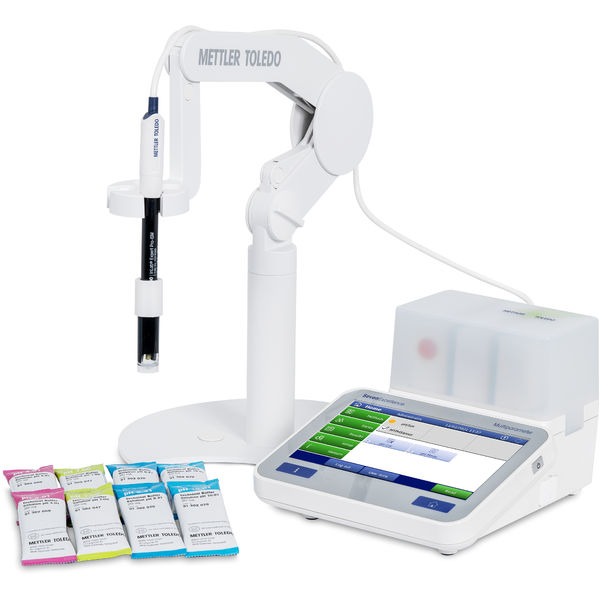

SevenExcellence pH/Ion meter S500-Std-K

Unmatched lab performance.SevenExcellence S500-Kit, pH/Ion benchtop meter kit with InLab Expert Pro-ISM

Professional and Powerful

This flexible meter is the perfect choice for accurate pH, ORP and ion concentration measurements and supports incremental ion techniques.

Full support with ion measurements

This meter guides the user through incremental ion methods and is a perfect match to our series of perfectION combined and half-cell ISE-sensors.

Efficient workflow support

The complete measurement cycle from data input to result output is efficient and intuitive.

Material No.: 30046249

Call for Quote
pH Finder
Overwhelmed by our big portfolio? No problem.
Overwhelmed by our big portfolio? No problem.

Rely on our pH Finder to provide you with a recommendation tailored to ​your specific needs in just a few clicks

Start Finder
Specifications - SevenExcellence pH/Ion meter S500-Std-K
Parameter
 pH
Ion
ORP
Channel
 Single-channel
Sensor
 InLab Expert Pro-ISM
pH measuring range
 -2 – 20
pH resolution
 0.001
0.01
0.1
pH accuracy (±)
 0.002
Ion concentration measuring range
 1.00E-9 – 9.99E+9
Ion concentration resolution
 3 digits (depending on unit)
Ion concentration accuracy (±)
 0.5 %
mV measuring range
 0 – 0
mV resolution
 0.1
1
mV accuracy (±)
 0.1
Temperature Range
 -30 °C – 130 °C
Temperature resolution
 0.1 °C
Temperature accuracy (±)
 0.1 °C
Security and compliance
 Password protection
GLP
21 CFR part 11 support
User management
Program SOPs into methods
Memory size
 250 analyses (20.000 data points)
Data Transfer
 PC
Printer
USB stick
Flexibilty and modularity
 Upgrade for additional parameters
Stirrer
Automation
Barcode reader
LabX software
Sensor Included
 Generalist Sensor
Languages
 English
Italian
French
Russian
Portuguese
Chinese
Korean
German
Spanish
Japanese
Display Type
 Color TFT Touchscreen
Meter Type
 Benchtop Single-Channel
mV measuring range
 -2,000.000–2,000.000
Dimensions
 235 x 188 x 75 mm
Weight
 1510 g
Connectors
 LAN
USB A
USB B
RS232
Mini-DIN
BNC
Cinch/RCA
Mini-LTW
Compatible with Intelligent sensor management (ISM)
 Yes
Portable Meter
 No
Product Line
 SevenExcellence

Simple Operation

The operation of SevenExcellenceTM is so intuitive that it can be immediately deployed without extensive training. Starting an analysis, changing the settings and accessing the results is easily achieved.

Intuitive and Clear

The large clear color display and the state-of-the-art touch screen operation make working with this instrument particularly enjoyable.

Complete Flexibility

SevenExcellenceTM fits three modules in any composition and order. It offers the highest possible flexibility as you can expand the instrument at any time, adding new measurement parameters.

Solid Compliance

This instrument has been designed to help you meet the most stringent compliance requirements. SevenExcellenceTM offers the ideal combination of innovative properties integrated within the instrument, appropriate documentation and services.

Efficient Workflow Support

Just one click is needed to start a sample or a series of measurements or an analysis series with an optional autosampler. Once setup, data archiving is a standard procedure that will take place automatically following each analysis.

Documentation

Product Brochures

SevenExcellence™ Product Brochure
SevenExcellence™
SevenExcellence™ is a revolutionary bench instrument for the precise measurement of pH, conductivity, ion concentration, redox potential and dissolved...

Applications

Biochemical Oxygen Demand From Theory to Practice
Biochemical Oxygen Demand From Theory to Practice
One important analysis to assess water quality is determining the BOD (biochemical oxygen demand). BOD is an indicator of the amount of organic matter...
Fluoride Ion Selective Electrode
Fluoride Ion Selective Electrode Application Guide
Download a free copy of the Fluoride Ion Selective Electrode Application Guide and get more information about theory, principle and calibration for th...

Software

Power the Bench - An Enhanced Strategy for Data Integrity
Power the Bench - An Enhanced Strategy for Data Integrity
Achieve workflow control, traceability and data automation by integrating bench top instruments and balances with LabX.
21 CFR Part 11 Compliant Instruments
21 CFR Part 11 Compliant Instruments
Electronic Records on Instruments without a PC? Please read why experts state, that standalone instruments cannot be 21 CFR Part 11 compliant and conc...

Accessories

Autosampler InMotion Flex 100mL
Flexible and Efficient

Material No.: 30094120

Barcode Reader Hand Scanner
Corded barcode reader for the reading of 1D / linear codes

Material No.: 21901297

Base Base InMotion Flex
The InMotionTM Flex manages sample loads from 11 large beakers (250 mL) up to 50 small glass tubes (25 mL) and combinations in between. Includes all modularity, flexibility, and options of the InMotion line.

Material No.: 30094121

Base InMotion Max
The InMotionTM Max handles the most demanding sample loads, from 24 large beakers (250 mL) up to 303 small glass tubes (25 mL) and combinations in between. Includes all modularity, flexibility, and options of the InMotion line.

Material No.: 30094123

Base InMotion Pro
The InMotionTM Pro handles higher sample loads, from 23 large beakers (180 mL) up to 182 small glass tubes (25 mL) and combinations in between. Includes all modularity, flexibility, and options of the InMotion line.

Material No.: 30094122

Cable USB (1.8 m A-B) for PC or printer
USB cable, 1.8 m

Material No.: 51191926

Cable USB 412

Material No.: 21901309

Compact Stirrer
The Compact Stirrer provides efficient stirring whenever magnetic stirring is impractical, e.g. for automation with the InMotion autosampler. The Compact Stirrer is delivered with 2x propellers.

Material No.: 51109150

Compact Stirrer Kit
Gentle stirring the sample with the compact overhead stirrer reduces the overall measurement error

Material No.: 30115728

Electrode holder uPlace
Moving straight up and down, the uPlace electrode arm can be operated faster than traditional designs with reduced likelihood of spills

Material No.: 30019823

Fingerprint Reader
LogStraight

Material No.: 51192107

InLab cable MultiPin-BNC/RCA 1.2m
Connecting cable for sensors with MultiPin sensor head.

Material No.: 30281896

InLab cable MultiPin-BNC/RCA 3m
Connecting cable for sensors with MultiPin sensor head.

Material No.: 30281897

InLab cable MultiPin-BNC/RCA 5m
Connecting cable for sensors with MultiPin sensor head.

Material No.: 30281898

InLab cable S7-BNC 1.2m
Connecting cable for sensors with S7 sensor head.

Material No.: 30281915

InLab cable S7-BNC 3m
Connecting cable for sensors with S7 sensor head.

Material No.: 30281916

InLab cable S7-BNC 5m
Connecting cable for sensors with S7 sensor head.

Material No.: 30281917

Lab equip acc data writer USB-P25/01
Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection

Material No.: 11124301

Magnetic stirrer uMix
Gentle stirring the sample with the uMix magnetic stirrer reduces the overall measurement error

Material No.: 30040000

Protective film (2 pcs)
Protective film for SevenExcellence display is a recommended solution for keeping the appearance of the touch screens clean and protecting their surface from dirt and scratches (2 films per pack).

Material No.: 30041155

Sample changer Rondolino pH
Automation

Material No.: 51302888

Consumables

Accessories

Temperature probe Pt1000
Stainless steel body (120*3 mm) with cable and 4 mm plug and replace

Material No.: 51300165

EasyPlus™ Sensors

Temperature probe ATC NTC 30k Ohm
Separate temperature sensor for general applications.

Material No.: 51300164

Laboratory ORP Buffers

Redox buffer 220mV/pH7, 250mL
Amazing solutions

Material No.: 51350060

Laboratory ORP Sensor

ORP electrode InLab Redox
A combination ORP electrode with platinum ring indicator and S7 screw head.

Material No.: 51343200

Laboratory pH Buffer

Techn. Buffer pH 2.00 sachets 30x20mL
Sachets for Effective Calibration

Material No.: 30111134

Technical buffer pH 4.01 30x20mL Sachets
Sachets for Effective Calibration

Material No.: 51302069

Technical buffer pH 7.00 30x20mL Sachets
Sachets for Effective Calibration

Material No.: 51302047

Technical buffer pH 9.21 30x20mL Sachets
Sachets for Effective Calibration

Material No.: 51302070

Technical buffer pH10.01 30x20mL Sachets
Sachets for Effective Calibration

Material No.: 51302079

Technical buffer pH11.00 30x20mL Sachets
Sachets for Effective Calibration

Material No.: 30111135

Rainbow I (3 x 10 sachets 20 mL)
Sachets for Effective Calibration

Material No.: 51302068

Rainbow II (3 x 10 sachets 20 mL)
Sachets for Effective Calibration

Material No.: 51302080

Bottle Rainbow Kit 1, 6x250mL
Reliable All-rounders

Material No.: 30095312

Bottle Rainbow Kit 2, 6x250mL
Reliable All-rounders

Material No.: 30095313

NIST/DIN Buffer pH 4.006 sachets 30x20mL
Sachets for Effective Calibration

Material No.: 30111136

NIST/DIN Buffer pH 6.865 sachets 30x20mL
Sachets for Effective Calibration

Material No.: 30111137

NIST/DIN Buffer pH 9.180 sachets 30x20mL
Sachets for Effective Calibration

Material No.: 30111138

NIST/DIN Buffer pH 10.012 sachets 30x20m
Sachets for Effective Calibration

Material No.: 30111139

Certified buffer pH 4.01, 250mL
Amazing solutions

Material No.: 51350032

Certified buffer pH 7.00, 250mL
Amazing solutions

Material No.: 51350034

Certified buffer pH 9.21, 250mL
Amazing solutions

Material No.: 51350036

Certified buffer pH 10.00, 250mL
Amazing solutions

Material No.: 51350038

Laboratory pH Sensor

pH Sensor InLab® Routine
A glass-body, combination pH electrode with S7 screw head for general laboratory applications; fast and highly chemical resistant.

Material No.: 51343050

pH Sensor InLab® Routine Pro-ISM
A glass-body, combination pH electrode with integrated temperature sensor, MultiPinTM head and ISM. Designed for general laboratory applications; fast and highly chemical resistant.

Material No.: 51344055

pH Sensor InLab® Max Pro-ISM
A glass-body, combination pH electrode with integrated temperature sensor, MultiPinTM head and ISM. Designed for general laboratory applications; highly reproducible and fast.

Material No.: 30248830

pH Sensor InLab® Science Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head, bridge electrolyte and movable glass sleeve junction. Designed for difficult applications like organic solvents, emulsions and protein containing samples.

Material No.: 51344072

pH Sensor InLab® Versatile Pro
A plastic-body, combination pH electrode with integrated temperature probe and fixed cable. Designed for general applications in the lab and outdoor; robust and fast.

Material No.: 51343031

pH Sensor InLab® Expert
A combination pH electrode with PEEK shaft and S7 screw head. Designed for general applications in the lab and outdoor; robust and maintenance-free.

Material No.: 51343100

pH Sensor InLab® Expert Pro-ISM
A combination pH electrode with integrated temperature probe, PEEK shaft, fixed cable and ISM. Designed for general applications in the lab and outdoor; robust and low maintenance.

Material No.: 30014096

pH Sensor InLab® Power Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, SteadyForceTM and a MultiPinTM head. Designed for general laboratory applications; highly reproducible, maintenance-free and autoclavable.

Material No.: 51344211

pH Sensor InLab® Easy
A combination pH electrode with plastic shaft, gel electrolyte and S7 screw head. Designed for general applications in the lab and outdoor; maintenance-free.

Material No.: 51343010

pH Sensor InLab® Ultra-Micro-ISM
A glass-body, micro combination pH electrode with MultiPinTM head and ISM. Ideal for measuring in very small vessels such as vials, micro plates and cuvettes.

Material No.: 30244732

pH Sensor InLab® Micro Pro-ISM
A glass-body, micro combination pH electrode with integrated temperature sensor, MultiPinTM head and ISM. Ideal for measuring in very small vessels like test tubes, vials and cuvettes.

Material No.: 51344163

pH Sensor InLab® Flex-Micro
A semi-micro combination pH electrode with a flexible shaft and fixed cable. Ideal for measuring in small vessels such as test tubes and vials.

Material No.: 51343164

pH Sensor InLab® NMR
A glass-body, micro combination pH electrode with S7 screw head. Designed for measurements in NMR tubes.

Material No.: 59904572

pH Sensor InLab® Solids Pro-ISM
A low maintenance electrode with an integrated temperature probe featuring a clog-free, open junction that eliminates the risk of protein fouling. Designed for solid and semi-solid food samples.

Material No.: 51344155

pH Sensor InLab® Viscous Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, SteadyForceTM and a MultiPinTM head. Designed for viscous samples like cosmetics, paints and glue.

Material No.: 51343151

pH Sensor InLab® Dairy
A glass-body, combination pH electrode with triple ceramic junction and S7 screw head. Designed for protein containing samples like dairy products, milk and cream.

Material No.: 59904591

pH Sensor InLab® Surface Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head and a flat membrane for measuring surfaces like paper, agar plates and skin.

Material No.: 30249570

pH Sensor InLab® Pure Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head, bridge electrolyte and a fixed glass sleeve junction. Designed for ion-weak-samples like ultra-pure water, deionized water

Material No.: 51344172

pH Sensor InLab® Cool Pro-ISM
A glass-body, combination pH electrode with integrated temperature sensor, MultiPinTM head and ISM. Designed for cold samples.

Material No.: 30247850

pH Sensor InLab® Reach Pro-225
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head and 225 mm long shaft for general application.

Material No.: 30248826

pH Sensor InLab® Reach Pro-425
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head and 425 mm long shaft for general application.

Material No.: 51343061

pH Sensor InLab® Smart Pro-ISM
A glass-body, digital combination pH electrode with integrated temperature probe, SteadyForceTM and a MultiPinTM head. Designed for general laboratory applications; highly reproducible, maintenance-free and autoclavable.

Material No.: 30027775

pH Sensor InLab® Flow
A glass-body, combination pH electrode with SteadyForceTM and S7 screw head for measurement in flow-through cell 611.

Material No.: 59902917

pH Electrolytes and Maintenance Solutions

Electrolyte KCl 3M 250 mL Bottle
Amazing solutions

Material No.: 51350072

Electrolyte KCl 3M 25 mL Bottle
Amazing solutions

Material No.: 51343180

InLab Storage Solution
Amazing solutions

Material No.: 30111142

Cleaning solution Pepsin-HCl, 250mL
Amazing solutions

Material No.: 51350100

Cleaning solution Thiourea, 250mL
Amazing solutions

Material No.: 51350102

Regeneration solution, 25mL
Amazing solutions

Material No.: 51350104

All-in-One Kit 1, 6x250mL
This kit contains a 250 mL bottle of the following items: technical pH buffers pH 4.01, pH 7.00, pH 9.21, 3 mol/L KCl electrolyte, pepsin cleaning solution and InLab storage solution.

Material No.: 30095314

All-in-One Kit 2, 6x250mL
This kit contains a 250 mL bottle of the following items: technical pH buffers pH 4.01, pH 7.00, pH 10.00, 3 mol/L KCl electrolyte, pepsin cleaning solution and InLab storage solution.

Material No.: 30095315

Get Your Quote
SevenExcellence pH/Ion meter S500-Std-K
