Titrator Excellence T9
Versatile titrator for all applications.The T9 provides top modularity within the Excellence line. Expandable from 1 to 8 total burettes plus 2 extra sensor boards to grow with advanced needs including Karl Fischer. Supports InMotion automation and 2 simultaneous titration workflows.
Runs Two Titrations Simultaneously
The powerful T9 runs two independent and/or automated titrations in parallel, essentially reducing the analysis time by up to 50%.
If… Then Decision Making
"If… Then" method functions ensure that the T9 can run complex workflows with decision trees, saving time when a human decision would be needed.
Solid Compliance
In regulated environments, LabX software provides full support for your compliance needs to 21 CFR Part 11 and EU Annex 11.
Material No.: 30252676
Features
Fully Flexible Automation
Compatible with powerful InMotion automation. Sample changing, complex titrations, cleaning steps and more run automatically, saving operator's time.
One Click User Interface
With the intuitive One Click touchscreen interface, customize home screens to run your workflows quickly and easily with a single tap on the screen.
Plug & Play Accessories
Sensors and burettes are automatically recognized when connected. Avoid errors by eliminating extra data entry steps and reduce instrument setup time.
Karl Fischer Titration
Excellence line titrators fully support both volumetric and coulometric Karl Fischer titrations to accurately measure water in liquid or solid samples from 0.001% to 100%.
Automated Workflows for Traceability
Data entry options include barcodes and RFID tags to instantly transfer sample IDs, weights, and chemical information, even automatically choosing the correct method for every sample.
SmartChemicals
The SmartChemicals accessory enables instant wireless transfer of titration chemicals' identity and shelf life data to the titrator. No mistakes or wasted operator time.
Specifications
Specifications - Titrator Excellence T9
| Additional Burette Drives (Optional) | 7 max. |
| Method Functions per Method | 150 max. |
| LabX Software | Express and server (not included) |
| Optional Extra Sensor Boards | 2 max. |
| Automation Option(s) | InMotion InMotion KF Oven Rondolino |
| Application Type | Karl Fischer (Coulometric) Karl Fischer (Volumetric) Potentiometric |
| Measurement Type | Acid/Base Amperometric indication Arsenometric Bromatometric Cerimetric Chromatometric Complexometry Conductometric Diazotitration Direct Measurement (Ion Selective) Iodometric Multiple standard addition Photometric Potentiometric Precipitation Redox Single-phase & two-phase (surfactants) Thermometric Voltametric indication |
| If…Then Conditions | Yes |
| Shortcuts per user | 24 |
| Karl Fischer titration | Yes |
| Solvent Manager Option | Yes |
| User rights management | Fully flexible role definitions |
| Parallel Titration | Yes |
| Max. number of methods | 150 |
| Samples per Analysis (Max.) | 303 |
| Barcode Reader Connection | Yes (USB) |
| Predefined methods | 70 |
| User-Defined Calculations | Yes |
| Tasks Running Simultaneously (Max.) | 8 |
| EQP titration | Yes |
| Generator Cell | Diaphragm optional |
| Task List (Max.) | 30 |
| One Click® User Interface | Yes |
| Flexibility and Modularity | Additional burettes Automation Continuous run mode Diaphragm (KF) Extra sensor boards If/then conditions KF upgrade options Liquid handling One-click user interface PC software Parallel titrations Plug-and-play accessories Pre-installed methods Sample weight transfer SmartChemicals SmartSample Solvent manager User management User-defined calculations |
| End point titration | Yes |
| Plug & Play Features | Burettes and Sensors |
| Terminal | Color touch screen with StatusLight |
| Drying Oven Option | DO308 (manual) |
| Upgradeability | No, highest model |
| Compliance and Data Security | 21 CFR Part 11, EudraLex, Volume 4, Annex 11 (With LabX Software) Password protection User management (fully configurable) |
| Printer Connection | Yes (USB) |
| Connectivity and Software | LabX software Network export USB export |
| Languages | Chinese, English, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish |
Documentation
Product Brochures
The modular design of the Titration Excellence line guarantees that you are optimally prepared for future changes. The modern platform provides you wi...
Datasheets
In addition to the many advantages of the Titration Excellence line such as One Click Titration, Plug & Play, method database and the refinements of t...
UserCom
Expert Tips, Product News and Applications for Analytical Chemistry — Titration, pH, Density & Refractometry, Melting & Dropping Point, UV/VIS Spectro...
Applications
The application chemists of the METTLER TOLEDO Analytical Chemistry market support group have prepared more than 600 of ready-made titration applicati...
Know-how
Free single methods directly from our application database. Our search engine allows you to search for applications by type, industry, and keyword. I...
Accessories
Accessories
Everything needed for volumetric Karl Fischer titration is available in one kit including the titration stand with vessel, sensor, cables and tubes, the Solvent Manager for One Click™ solvent exchange and all small accessories. Simply choose a burette size and add Karl Fischer titration to your general titrator.
Material No.: 51105605
Analysing water content in solid samples can be very time consuming and, if not carried out very carefully, can lead to serious errors. The homogenizer adapter sets allow the use of high speed homogenizers directly in the titration vessel.
Material No.: 51107409
Accessories and Consumables for Density Meters
Brown Glass Bottle, 1L
Brown glass bottle, 1L
Material No.: 71296
Automated Refractometry Measurement

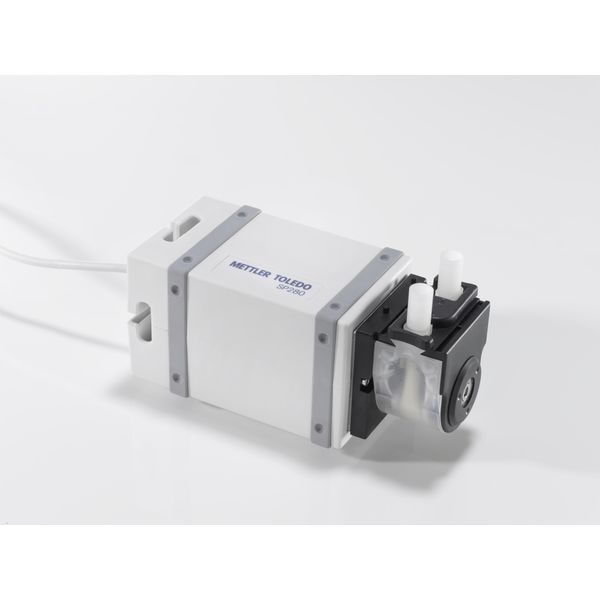

SPR200 Peristaltic Reversible Pump for InMotion™ autosamplers and Excellence density meters and refractometers.
Material No.: 30094285
EasyPlus™ Accessories
Excellence Refractometer Accessories and Consumables
InMotion™ Autosamplers
The InMotionTM Flex manages sample loads from 11 large beakers (250 mL) up to 50 small glass tubes (25 mL) and combinations in between. Includes all modularity, flexibility, and options of the InMotion line.
Material No.: 30094121
The InMotionTM Pro handles higher sample loads, from 23 large beakers (180 mL) up to 182 small glass tubes (25 mL) and combinations in between. Includes all modularity, flexibility, and options of the InMotion line.
Material No.: 30094122
The InMotionTM Max handles the most demanding sample loads, from 24 large beakers (250 mL) up to 303 small glass tubes (25 mL) and combinations in between. Includes all modularity, flexibility, and options of the InMotion line.
Material No.: 30094123
InMotion™ Karl Fischer Autosampler
The InMotion KF autosampler is designed for water determination by the oven extraction technique. Upon heating to the sample-specific temperature, the water evaporates and is transferred into the titration vessel by a stream of dry air or nitrogen.
Material No.: 30407500
The InMotion KF autosampler is designed for water determination by the oven extraction technique. Upon heating to the sample-specific temperature, the water evaporates and is transferred into the titration vessel by a stream of dry air or nitrogen.
Material No.: 30407501
The InMotion KF autosampler is designed for water determination by the oven extraction technique. Upon heating to the sample-specific temperature, the water evaporates and is transferred into the titration vessel by a stream of dry air or nitrogen.
Material No.: 30407502
The InMotion KF autosampler is designed for water determination by the oven extraction technique. Upon heating to the sample-specific temperature, the water evaporates and is transferred into the titration vessel by a stream of dry air or nitrogen.
Material No.: 30407503
Rondolino

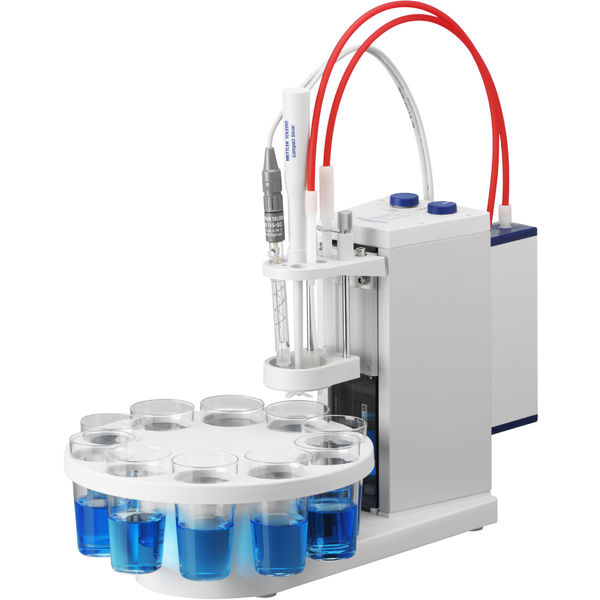

Sample Changer Rondolino
Automated Titration Stand
Material No.: 51108500
SmartChemicals
Titration Software LabX
LabX Express Starter Pack for Titration, includes one instrument license for Titration. Can be expanded by up to 3 instruments.
Material No.: 30097754
LabX Server Starter Pack for Titration, includes the user management and auto import/export options and one instrument license for Titration. Can be expanded up to 60 instruments.
Material No.: 30097755
UV Vis Spectrophotometer Accessories
Corded barcode reader for the reading of 1D / linear codes
Material No.: 21901297
UV/VIS Autosampler
pH Accessories for Meters and Sensors
RS232 9-pin (male to female) cable for connecting a balance to a printer, PC, or titrator
Material No.: 11101051
Consumables
Accessories and Consumables for Density Meters

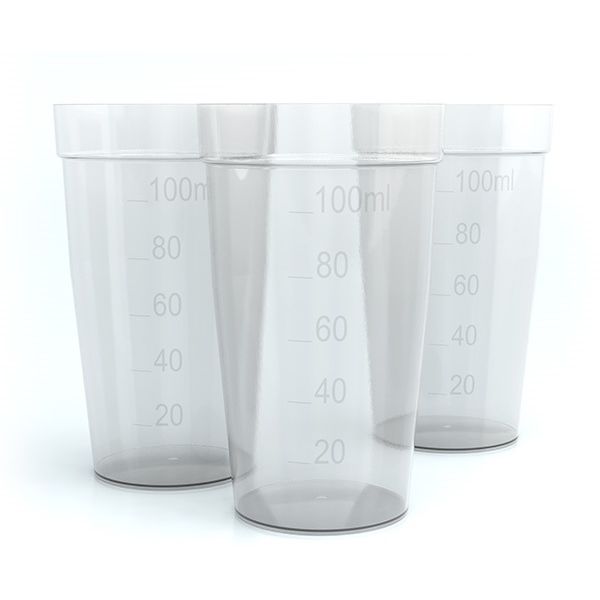

Beaker PP (100mL), 120 pcs.
Disposable titr. beakers 120
Material No.: 51109388

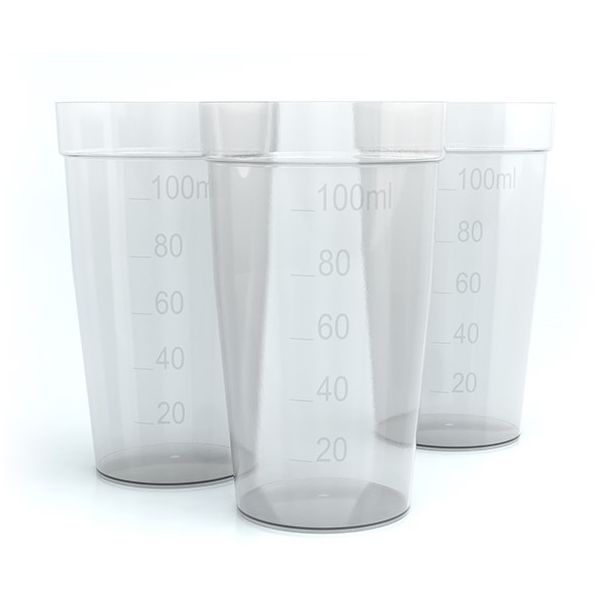

Beaker PP (100mL), 480 pcs.
Disposable titr. beakers 480
Material No.: 51109389
EasyPlus™ Accessories
Laboratory Conductivity Sensor

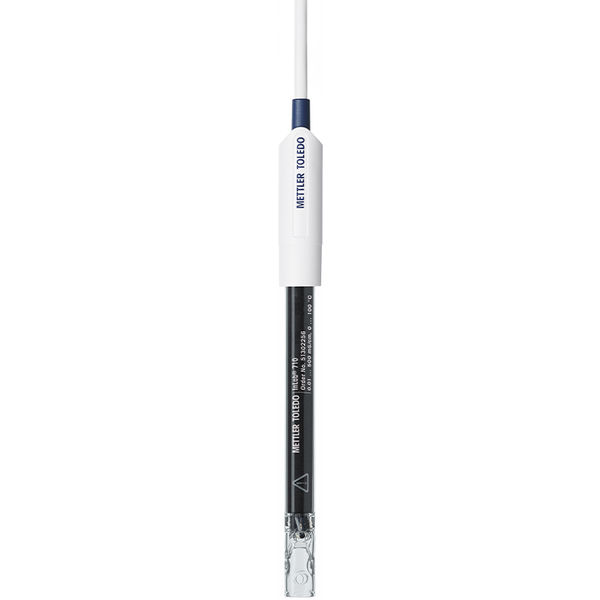

A 4 platinum poles conductivity cell with a chemical resistant glass body and integrated temperature probe. Designed for aggressive or organic samples.
Material No.: 51302256

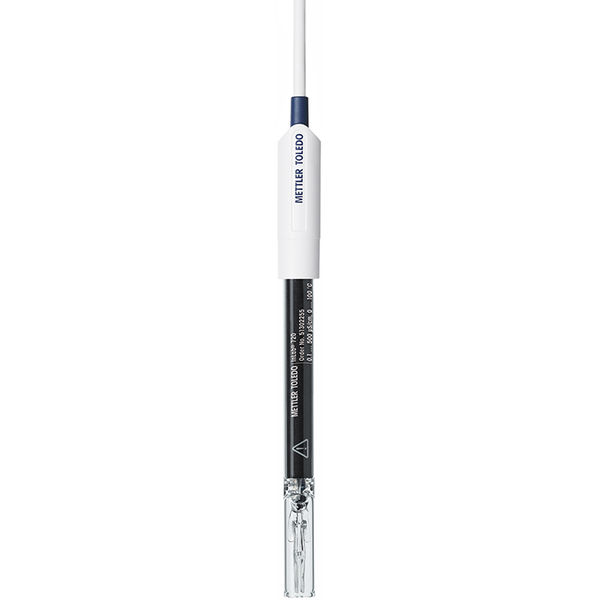

A 2 platinum poles conductivity cell with a chemical resistant glass body and integrated temperature probe. Designed for aggressive or organic samples.
Material No.: 51302255
A 4 graphite poles conductivity cell with integrated temperature probe. Designed for general applications like standard and high conductivity samples.
Material No.: 51344020

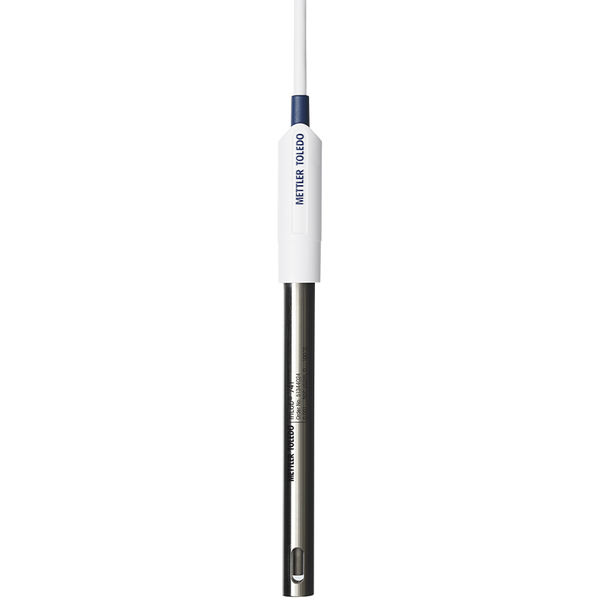

A 2 steel poles conductivity cell with integrated temperature probe. Ideal for low conductivity range samples like pure water and ultra pure water.
Material No.: 51344024
Metal sensors
The DMi101-Mini is a rugged semi-microsensor for redox titrations of small sample volumes of 10 to 20 mL. Also for use on InMotion Autosamplers with 80 mL or 25 mL beakers.
Material No.: 51109523
Robust mini-electrode for small sample volumes. Combined semi-micro silver ring electrode for argentometric precipitation titration, i.e. titrating ions that precipitate with silver.
Material No.: 51109533
The DMi140-SC is a combined platinum ring redox electrode with a ceramic frit, designed for redox titration with change of pH value. Particular application in electroplating or electronics industries.
Material No.: 51109520
General purpose combined silver ring electrode for all argentometric precipitation titrations, e.g. titrating ions that form precipitations with silver. For small sample volumes see DMi102-SC.
Material No.: 51109530
A long sensor for chemical oxygen demand (COD). The DMi144-SC combined platinum ring sensor conducts fully automated redox titration directly in standard decomposition vessels with the InMotion Autosamplers and COD kit.
Material No.: 51109521
The DMi145-SC is a combined silver ring electrode for argentometric titrations that gives an especially accurate determination of chloride in foods.
Material No.: 51109531
Combined platinum ring electrode for redox titration. The electrode features a junction-free bulb glass reference which cannot be blocked by precipitates.
Material No.: 51109522
The DMi148-SC combined silver ring electrode is ideally suited to detect chloride in non-aqueous media and -- simply by sulfidizing the silver ring -- to titrate mercaptans in petroleum products.
Material No.: 51109532
The DM143-SC is a durable, double-pin platinum electrode requiring zero maintenance. Primarily for redox titrations of food constituents such as Vitamin C or free and total SO2 in wine.
Material No.: 51107699
Photometric sensor
The DP5 Phototrode™ is the next generation of photometric titration sensor from METTLER TOLEDO, delivering high precision and ultimate functionality for demanding electroplating and electronics applications, two-phase titration and more.
Material No.: 51109300
Surfactant sensors

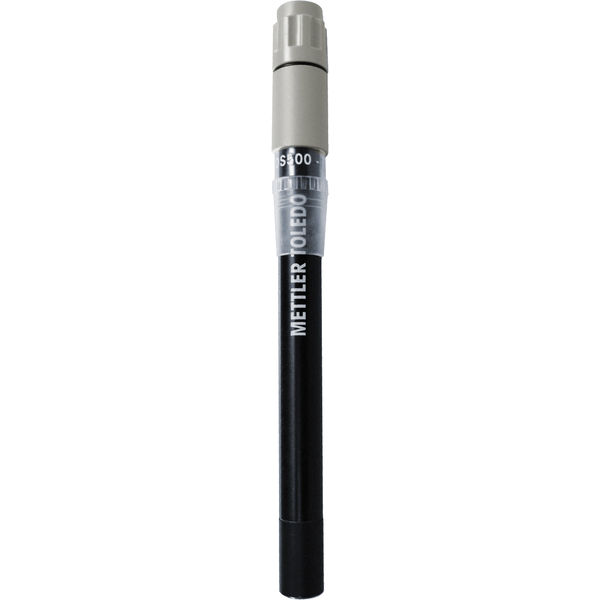

Titrate surfactants in aqueous matrices easily with the DS500 surfactant-sensitive electrode, which is suitable for most ionic and nonionic surfactants.
Material No.: 51107670
The DS800-TwoPhase is the sensor of choice for the titration of anionic and cationic surfactants in cosmetics formulations and raw products, liquid detergents, and shampoos, cutting oils, cooling lubricants, and more.
Material No.: 51109540
Temperature probe and reference sensors

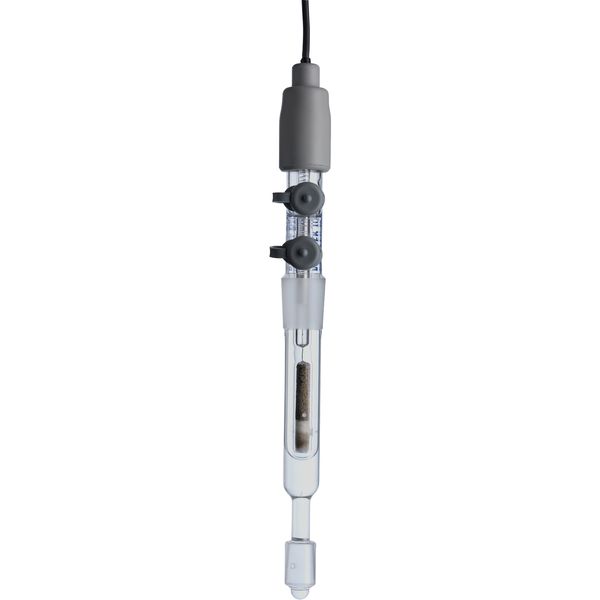

DX200 reference sensor for direct pH measurements and acid/base titration in difficult aqueous or non-aqueous matrices. Strict conformity to ASTM D664. For use with half cell sensor DG300-SC.
Material No.: 51089935

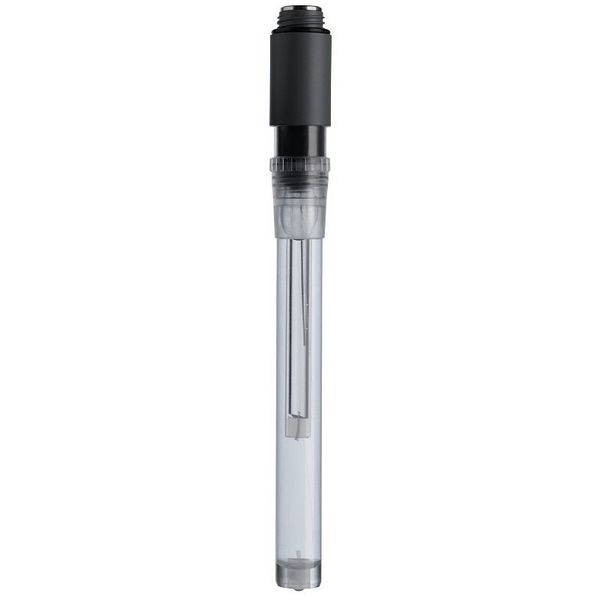

The DX202-SC is a reference sensor with resistant plastic shaft, for acid-base titration in media containing hydrofluoric acid. For use with half cell sensor Sb850-S7/120.
Material No.: 51109295

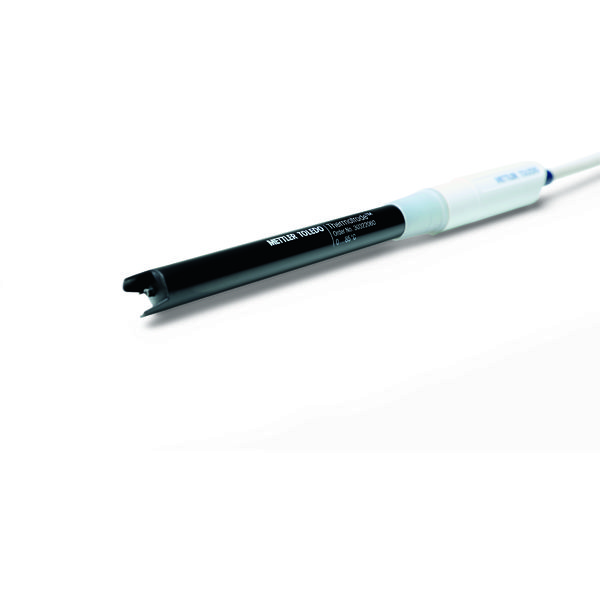

Thermometric sensor
pH glass sensors
The DGi101-SC is a powerful micro pH sensor with a 3 mm shaft made especially for small sample volumes of 5 to 20 mL. For use on InMotion Autosamplers with 80 mL or 25 mL beakers.
Material No.: 51109507

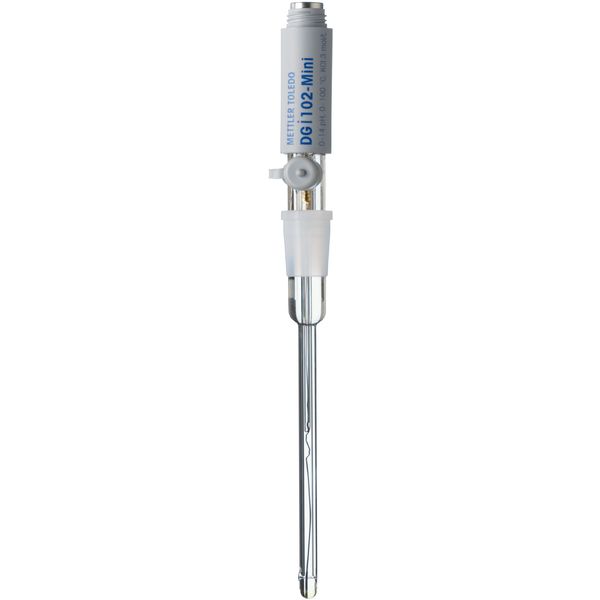

The DGi102-Mini is a powerful micro pH sensor with a 6 mm shaft made especially for small sample volumes of 5 to 20 mL. Also for use on InMotion Autosamplers with 80 mL or 25 mL beakers.
Material No.: 51109508

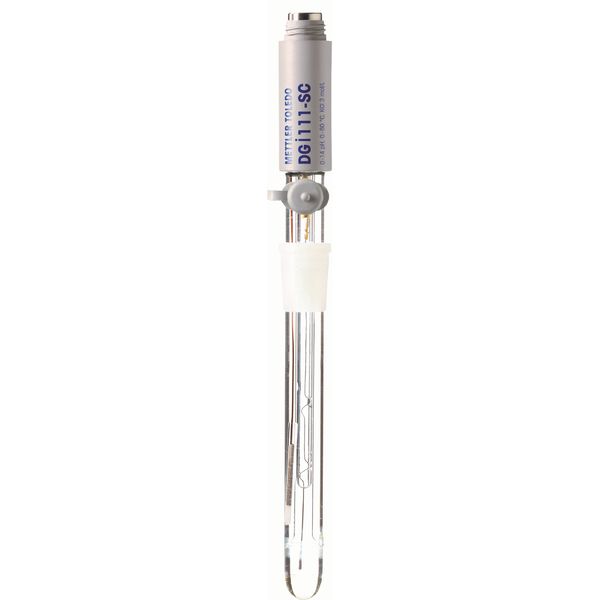

Combined glass pH electrode with a ceramic pin for direct pH measurement and acid/base titration in aqueous medium. A flexible all-rounder for a large variety of standard lab applications.
Material No.: 51109500
The DGi112-Pro is a double-junction pH sensor designed for specific adaptation to difficult sample matrices. Ideal for titration of acid mixtures in demanding electrochemical baths.
Material No.: 51109501

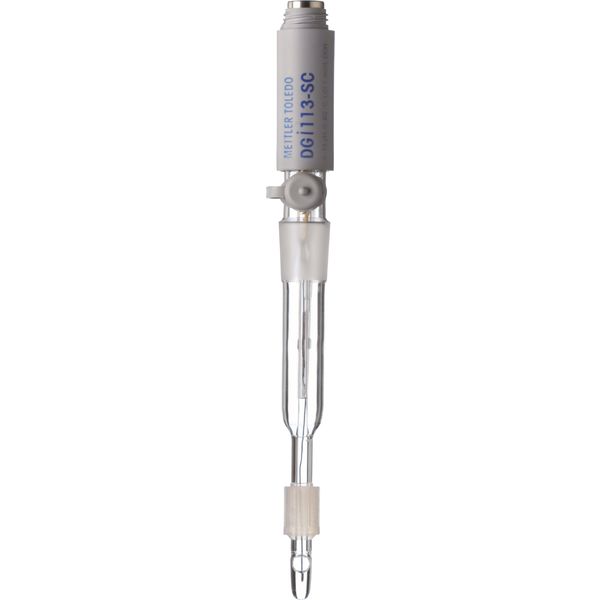

Combined glass pH electrode with a movable, easy-to-clean sleeve junction for acid-base titration in non-aqueous media. The all-rounder for non-aqueous sample matrices.
Material No.: 51109502
The DGi114-SC is a combined glass pH electrode with a movable, easy-to-clean sleeve junction. The simple, stable, and durable design makes it an ideal choice for pulp and paper production applications.
Material No.: 51109503

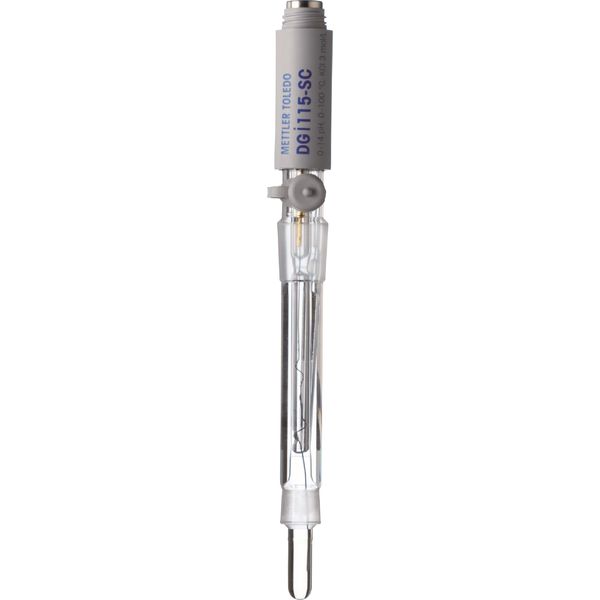

Optimized for food quality analyses. DGi115-SC is a combined glass pH electrode with a fixed ground-glass sleeve junction and Plug & Play functionality. Especially designed for stable measurement signal and easy cleaning.
Material No.: 51109504

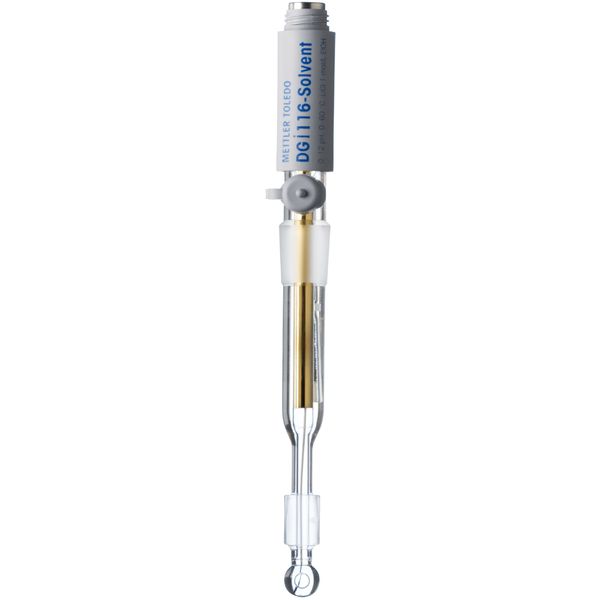

Flexible durable pH glass sensor for non-aqueous titration. Provides fast response times and quick signal equilibration in petroleum and other oil-based matrices.
Material No.: 51109505

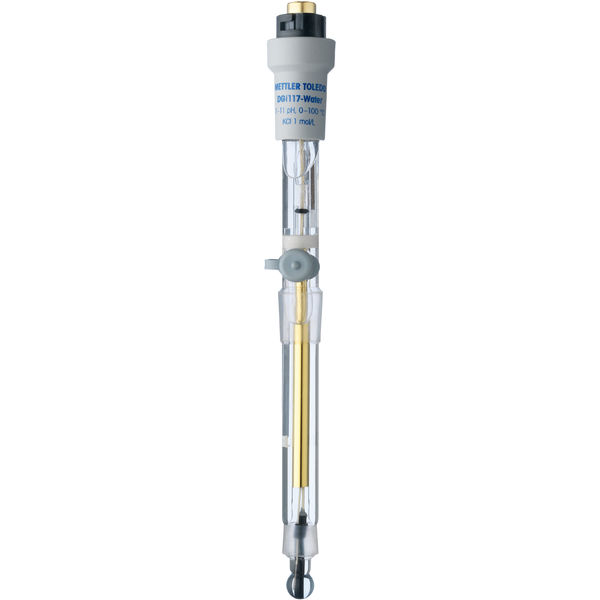

Combined pH sensor with ground glass sleeve junction. For direct pH measurement and acid-base titration, with simultaneous temperature measurement in aqueous solutions of low ion conductivity and low buffer capacity.
Material No.: 51109506

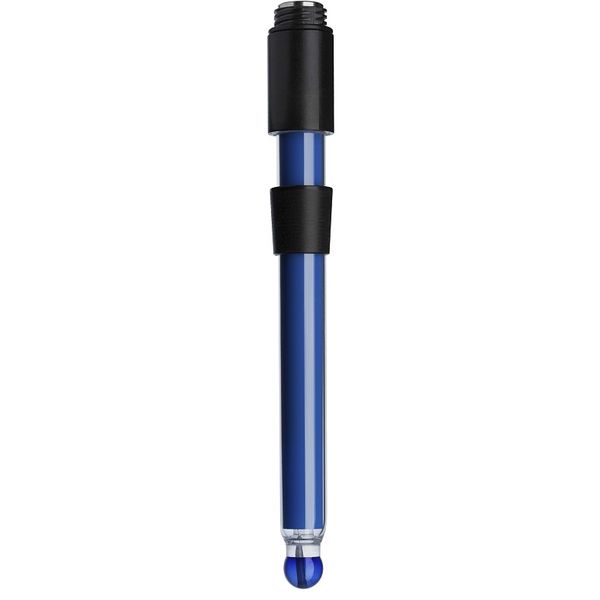

Glass half cell pH electrode for direct pH measurements and acid/base titration in difficult aqueous or non-aqueous matrices. Strict conformity to ASTM D664. For use with reference sensor DX200.
Material No.: 51109286
