InMotion KF Pro Oven Autosampler (20mL)
Powerful and Versatile.The InMotion KF autosampler is designed for water determination by the oven extraction technique. Upon heating to the sample-specific temperature, the water evaporates and is transferred into the titration vessel by a stream of dry air or nitrogen.
Accurately Determine Optimal Temperature
Temperature Scan provides great measurement performance in determining the ideal heating temperature of a substance in just a single run.
Flexible Method Functionality
Know your data is precise and can be trusted. The InMotion KF Pro can automatically check water standards before and after every sample series.
Efficient Sample Preparation
The innovative one-piece cap increases lab efficiency, enabling simple, safe, and fast sample preparation with a reduced chance of chemical exposure.
Material No.: 30407501
Features
Choose Your Sample Size
Analyze up to 20 - 20 mL samples in a single run, or contact us about our rack customization possibilities.
Direct Control
The InMotion™ KF autosampler is completely controlled by the titrator or LabX Software: All parameters, such as the oven temperature, heating rate, and flow rate, can be simply stored in methods.
Double Efficiency in the Lab
Analyze 2 samples in parallel by connecting up to two InMotion KF ovens with T9 titrators - saving time, bench space, and boosting productivity.
Unattended Solvent Exchange
The Solvent Manager automatically replaces solvents during a run when used with the Peristaltic Pump SP280. Increase both productivity and user safety while avoiding incorrect results due to exhausted solvents.
At-a-Glance Status information
The StatusLight on the top of the InMotion KF shows you immediately if your analysis is still running, needs your attention, or is ready to run more samples. Use LabX to email results or a message to notify you of the current status when you're not in the lab.
Secure Gas Flow Control
Control the efficiency of the water extraction with digital gas flow control. Generate gas with the Air Pump AP200 or regulate with an SV2 valve
Specifications
Specifications - InMotion KF Pro Oven Autosampler (20mL)
| Compatible titrators | Excellence Titrators (T7 & T9) Compact Titrators (C30SX, C30SD, V30S) |
| Integrated Digital Gas Flowmeter | Yes |
| Tube Set for Automatic Solvent Exchange | Yes |
| LabX® Titration Express / Server | Yes |
| Temperature Scan and Ramp Functionality | Yes |
| Number of Positions | 20 |
| Flexible Method with Multiple Loops | Yes |
| Air pump AP200 | Yes |
| Gas Stop Valve SV2 | Yes |
| Heated Transfer Tube | Yes |
| Solvent manager | Yes |
| SP280 Peristaltic Pump | Yes |
| Vial Volume (Borosilicate Glass) | 20 mL |
| Cap Type | One-Piece FEP Screw Cap |
| Dimensions (HxWxD) | 447 mm x 250 mm x 390 mm |
| Weight | 9.3 kg |
| Sensor Accuracy | +/- 5 mL / min |
| Temperature compensation | Yes |
| Supported Gases | Air, Nitrogen |
| Temperature Range | 40 °C – 280 °C |
| Accuracy | +/- 3 ºC |
| Stability | +/- 0.5 ºC |
| Reproducibility | +/- 0.5 |
| Heating Rate (/min) | 70 ºC / min |
| Cooling rate (for T > 100ºC) | > 20 ºC / min |
| Application Type | Automation solutions |
| Number of Samples per Series | 120 |
| Connectivity and Software | LabX software |
Documentation
Accessories
The Air Pump AP200 generates the gas flow needed to transfer the water extracted from the sample to the titration cell. An electronic gas flowmeter integrated in the autosampler precisely regulates and controls the gas flow.
Material No.: 30407441
The Gas Stop Valve uses the lab’s own gas line to transfer the water extracted from the sample to the titration cell. An electronic gas flowmeter integrated in the autosampler precisely regulates and controls the gas flow.
Material No.: 30407442
Consumables
Accessories

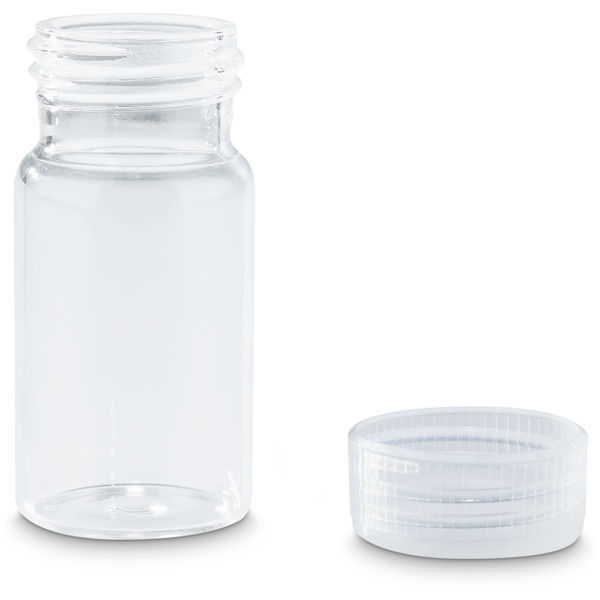

The innovative one-piece cap is compatible with 20 mL vials. The caps are made of FEP, ensuring your samples are perfectly sealed in the vial and delivering repeatable, accurate results across all the temperature ranges for water determination.
Material No.: 30407437
The long needle is useful to extract water from viscous or oily samples more efficiently.
Material No.: 30407447
The innovative one-piece cap is compatible with 20 mL vials. The caps are made of FEP, ensuring your samples are perfectly sealed in the vial and delivering repeatable, accurate results across all the temperature ranges for water determination.
Material No.: 30462991
