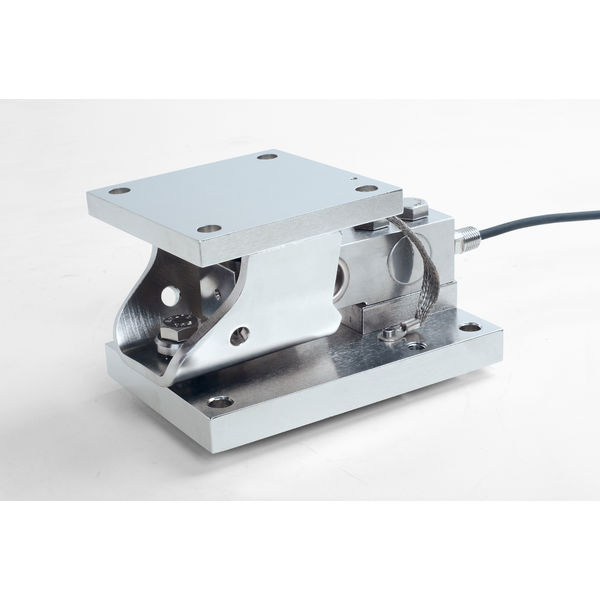

Weigh Module SWB505 CS 4.4T/10K
Weigh Module SWB505 MultiMount Carbon Steel 4.4t/10k
Material No.: 61043211
Highlights
Static & Dynamic Weighing
Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection
Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell. Peace of mind.
Ease of Installation/Service
Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.
Specifications
Specifications - Weigh Module SWB505 CS 4.4T/10K
| Maximum Capacity | 10,000 lb (4,400 kg) |
| Material | Carbon Steel Zinc plated steel |
| Metrology | NTEP III 5M OIML C3 |
| Load Cell | 0745A 10m (33ft) cable |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Normal / Carbon Steel |
| Hazardous Approval | ATEX FM cFM |
| Criticality | Standard |
