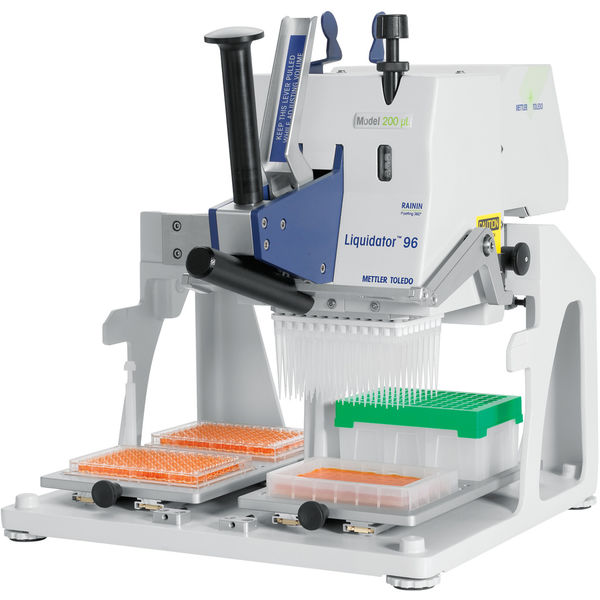

Liquidator96, 5-200 µL LIQ-96-200

リクイデーター96 - 速い96ウェルピペッティング.リクイデーター 96チャンネルベンチトップピペッター 容量範囲5-200μL LTS™ LiteTouch™チップ使用 全チャンネル一貫したサンプル吸引 96,384プレート作業 LIQ-96-200

速くてフレキシブル

96ウェル・ピペッタ。プレートの投与、再現、充填、洗浄、混合に最適です。小型でポータブル- 卓上またはラミナーフローキャビネットでご使用ください。

使いやすい - プログラミングなし

手動ピペット同様にソフトウェアやプログラミング、電源が不要。いつでも誰でもすぐに使用可能

時間とお金を節約

20秒で96ウェル、プレート25枚は10分足らず。必要なトレーニングはわずかで、メンテナンスも簡単

Accurate and efficient, Liquidator 96 maximizes workflow, without complicated programming or dedicated technician time. Incredibly fast, Liquidator 96 is ideal for many applications: genomics, proteomics, and general plate replication, plate filling between 96 and 384-well, wash and dilution steps in various assays. Its ability to pipette 96 wells at once makes Liquidator 96 vital for time-critical enzyme-based assays: all 96 reactions can be started and stopped simultaneously! Designed for ultimate performance, precision, and accuracy, Liquidator 96 ensures reproducible results from well-to-well and plate-to-plate.

Standard configuration
• Volume range 1–200 μl, in 1 μl increments
• Six adjustable feet for support and absolute level operation
• Magnetic detents at both ends of liquid head track
• Four SBS footprint operating positions
• Left or right-handed operation
• Tip height can be set for each position
• Small footprint, 2.5 sq. ft.

仕様 - Liquidator96, 5-200 µL LIQ-96-200

5 µL – 200 µL
インクリメント(手動)
0.2 µL
精度± /
1 % / 200 µL ; 1 % / 100 µL ; 2 % / 20 µL ; 5 % / 5 µL
精度± /
0.5 % / 200 µL ; 0.8 % / 100 µL ; 1.5 % / 20 µL ; 5 % / 5 µL
チップテクノロジー
ライトタッチ・システムLTS; ハイスループットのピペット
最大容量
200 µL
数量
1 個
品番
17010335

作動時:

手動の96ウェルピペッター。プレートの投与、再現、充填、洗浄、混合に最適です。小型でポータブル- 卓上またはラミナーフローキャビネットでご使用ください。

関連文書

カタログ

Liquidator96:手動96チャンネルピペッティング(日本語版)
メトラー・トレドは、スピード、正確性、使い易さを追求した 20μL および 200μLのLiquidatorを開発しました。研究者がどのように作業を進めているか、そしてハイスループットのピペッティングがどのように研究室全体のワークフローに貢献するのかを理解することで、卓越した正確性と精度そして比類の...
BenchSmart96 new instrument service
BenchSmart96 New Instrument Service
BenchSmart96 Service Terms and Conditions
BenchSmart96 Service Terms and Conditions
BenchSmart96 after purchase service
BenchSmart96 After Purchase Service

データ―シート

Liquidator96:より迅速で簡単なワークフロー(日本語版)
正確で効率性の高いLiquidator96は、複雑なプログラミングや専任の技術者は不要です。データシートで詳しく説明します。
Liquidator 96 Reservoirs Datasheet
The Liquidator Reservoir product line encompasses a selection of the most common reservoirs and vessels used for liquid handling with 96-channel pipet...

Manuals

Liquidator 96 Operating Instructions
This manual provides a complete overview of the operating instructions for the Liquidator 96 Benchtop Pipetting System.
BenchSmart 96 Firmware Update Instructions
This BenchSmart 96 Firmware Update Instructions provides a complete overview of the operating instructions for the BenchSmart 96 Pipetting System.
BenchSmart 96 Terminal Software Upgrade Instructions
This BenchSmart 96 Terminal Software Upgrade Instructions for the BenchSmart 96 Pipetting System.
BenchSmart 96 Operating Instructions
This manual provides a complete overview of the operating instructions for the BenchSmart 96 Pipetting System.

アクセサリ

PureSpeed のアクセサリ

96 deepwell plate, 5-pack

品番: 17012623

ハイスループットピペッティング

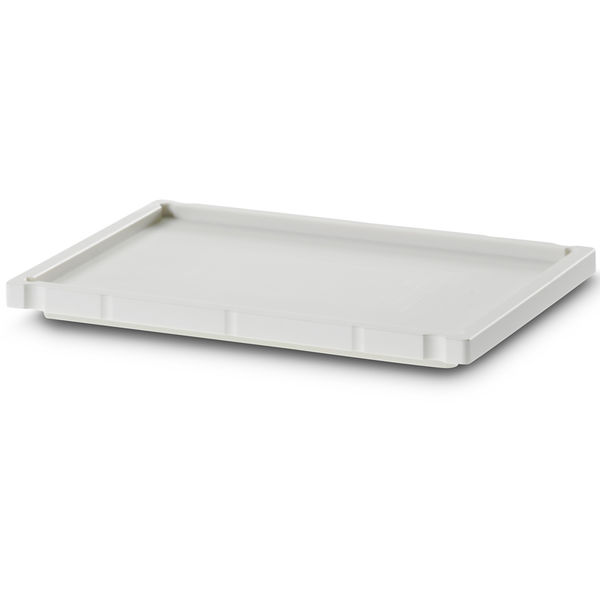

Liquidator 384-well adapter plate stage

品番: 17010394

Liquidator 384-well adapter plate stage, black

品番: 17010791

20 µl tip adapter plate stage - white

品番: 17011118

Height adjustment post for 200 μL Liquidator 96

品番: 17014270

SBS polypropylene reusable reservoirs. Low profile 96 pyramidal wells, 5-pack

品番: 17012602

SBS polypropylene reusable reservoirs. Sterile low profile 96 pyramidal wells, 5-pack.

品番: 17012603

SBS polypropylene reusable reservoirs. Standard profile 96 pyramidal wells 5-pack.

品番: 17012604

SBS polypropylene reusable reservoirs. Sterile standard profile 96 pyramidal wells, 5-pack.

品番: 17012605

SBS polypropylene reusable reservoirs. Low profile 8-channel V-bottom, 5-pack.

品番: 17012608

SBS polypropylene reusable reservoirs. Sterile low profile 8-channel V-bottom, 5-pack.

品番: 17012609

SBS polypropylene reusable reservoirs. Standard profile 8-channel V-bottom, 5-pack.

品番: 17012606

SBS polypropylene reusable reservoirs. Sterile standard profile 8-channel V-bottom, 5-pack.

品番: 17012607

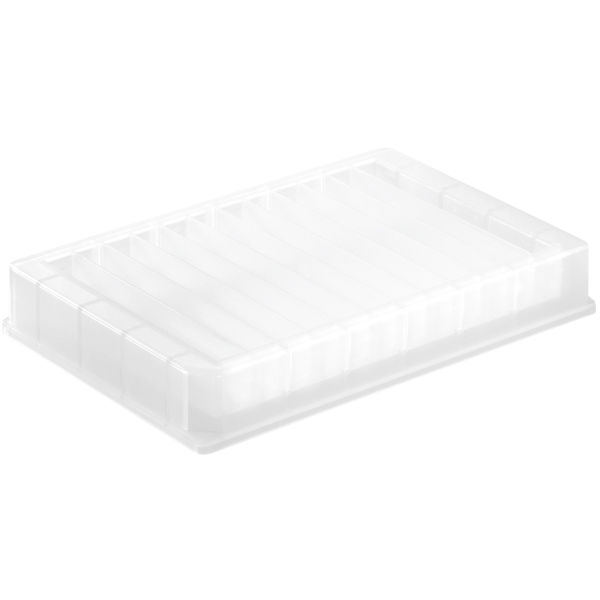

SBS polypropylene reusable reservoirs. Low profile 12-channel V-bottom, 5-pack.

品番: 17012612

SBS polypropylene reusable reservoirs. Sterile low profile 12-channel V-bottom, 5-pack.

品番: 17012613

SBS polypropylene reusable reservoirs. Standard profile 12-channel V-bottom, 5-pack.

品番: 17012610

SBS polypropylene reusable reservoirs. Sterile standard profile 12-channel V-bottom, 5-pack.

品番: 17012611

Deepwell plate. Sterile 2.2 mL 96-deepwell plate, square wells, 5-pack.

品番: 17012624

Polymeric sealing mat. Polymeric sealing mat for 96-deepwell plate, 5-pack.

品番: 17012625

Polymeric sealing mat. Sterile polymeric sealing mat for 96-deepwell plate, 5-pack.

品番: 17012626

Racked 1.2 ml microtubes. 8-tube strips (8x12). Non-sterile 5-pack.

品番: 17012627

8-cap strips for 1.2 ml microtubes. Box of 300 strips. Non-sterile.

品番: 17012629

消耗品

ハイスループットLTSチップ

BioClean High-Throughput Tips, 960 tips in 10 racks

品番: 17010645

BioClean High-Throughput Tips, 960 tips in 10 racks, filter

品番: 17010646

BioClean High-Throughput Tips, 960 tips in 10 racks, presterilized

品番: 17010647

BioClean High-Throughput Tips, 960 tips in 10 layers, presterilized

品番: 17010649

BioClean High-Throughput Tips, 960 tips in 10 layers

品番: 17010648

ローリテンションチップ

ピペットチップ LQR LTS 200µL LS 960/10
960 Low retention LTS tips in 10 racks, presterilized

品番: 17014401

ピペットチップ LQR LTS 200µL FL 960/10
960 Low retention LTS tips in 10 racks, filter, presterilized

品番: 17014402

ピペットチップ LQS LTS 200µL LS 960/10
960 Low retention LTS tips in 10 refills, presterilized

品番: 17014404
