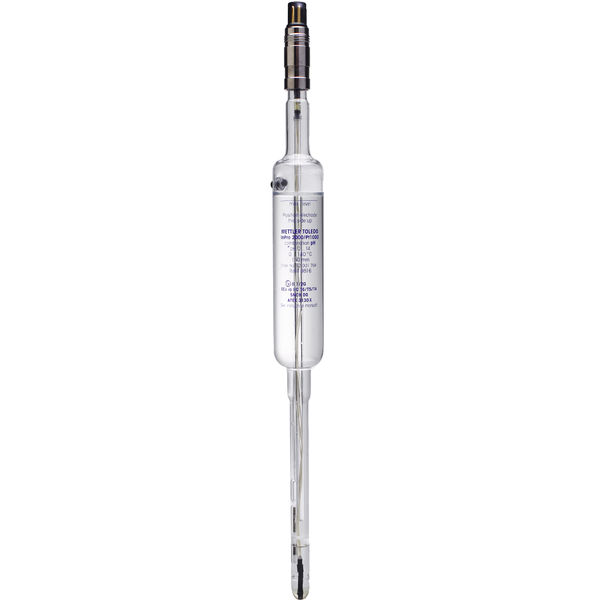

InPro 2000 120/PT1000/9816 Refillable Analog pH Sensor

pH Sensor InPro 2000 120/PT1000/9816

Refillable pH Probe with Viscolyt

The InPro 2000 120/PT1000/9816 is a refillable analog pH probe with an integrated PT1000 temperature sensor for demanding applications. This 120 mm refillable pH sensor with Viscolyt electrolyte is a reliable pH measurement solution.

For Use in Extreme Conditions
The InPro 2000 120/PT1000/9816 uses a pressurizable reference electrolyte to ensure measurement stability and low maintenance in harsh applications.

Refillable Sensor with Long Lifetime
This pH sensor uses a refillable Viscolyt electrolyte for extended refill intervals and to ensure reliable results over a long lifetime.

Watertight connection
The IP 68 watertight cable connection provides excellent signal transmission in all environments.

pH Sensor InPro 2000 120/PT1000/9816
◄Produit précédent
Électrodes de pH et redox rechargeables
Produit suivant►
Spécifications - pH Sensor InPro 2000 120/PT1000/9816
Analogique ou ISM Analog
Paramètres de mesure pH
Type de membrane de verre pour la mesure du pH High Alkali glass (HA)
Jonction simple ou double Single Junction Refillable
Longueur de la sonde 120 mm
Signal de température PT1000
Type de connexion VP
Masse liquide/métal redox None
Électrolyte Viscolyt
pH range 0-14 pH
Résistance à la pression (bar) 0 to 6 barg (in presurized housing)
Résistance à la pression (psi) 0 to 87 psig (in presurized housing)
Système de référence Argenthal with silver-ion trap
Stérilisable Yes
Autoclavable Yes
Diaphragme Ceramic
ATEX Certification SEV 14 ATEX 0168 X<br> Ex ia IIC T6/T5/T4/T3 Ga/Gb
FM approval IS/ I, II, III /1/ABCDEFG /T6
IECEx Certificate of Conformity IECEx SEV 14.0025X<br> Ex ia IIC T6/T5/T4/T3 Ga/Gb
Plage de températures de mesure (imp) 32 to 284° F
Plage de températures de mesure (metric) 0 to 140° C
Référence 52001427

Features and Benefits

Reliable in Demanding Applications
The InPro 2000 120/PT1000/9816 refillable pH sensor uses a pressurizable reference electrolyte that ensures permanent self-cleaning of the diaphragm. This leads to long-term pH measurement stability and low maintenance in harsh applications.

Long Electrolyte Refill Intervals
This refillable pH sensor uses Viscolyt electrolyte. This electrolyte has a limited flow, which means longer operation before refill is needed. This reduces the required regular maintenance of your refillable pH sensor.

Meets Your Installation Requirements
The InPro 2000 120/PT1000/9816 has an integrated PT1000 temperature signal for reliable temperature compensation. With a 120 mm length, it is optimal when short installation lengths are needed.

Accurate, Reliable Measurement System
The InPro 2000 is designed with long-term accuracy and reliability in mind. It is sterilizable and autoclavable, has a silver-ion trap to prevent sulfide poisoning of the junction, and is ATEX and FM certified for installation in hazardous areas.
