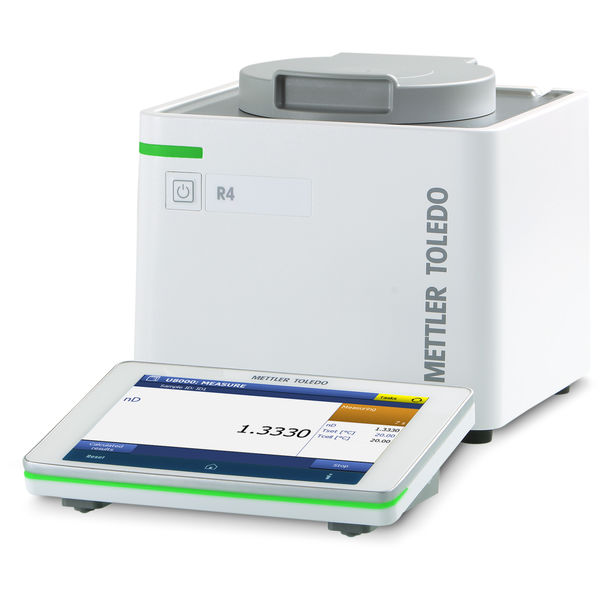

Refractometer Excellence R4
The all-rounder for daily routines.Accurate, intuitive, and modular, the Excellence R4 offers fast refractive index measurements with automatic temperature control, color-coded result limits, user management and more. Everything via an incredibly easy-to-use user interface.
Simple One Click™ Operation
The One Click™ user interface enables users to, with one click, start a complete workflow containing sampling, measuring, rinsing, drying, and SOPs.
User Management
The user management system allows for different level of access to be defined, with each user having their own personalized home screen and language.
Result Limits
Measurement limits can be set for color-coded pass/fail information of accepted and rejected samples.
رقم المادة: 30474903
Product Family:refractometer000800020003
المواصفات - Refractometer Excellence R4
| Accuracy nD (±) | 0.0001 |
| Temperature control range | 5 °C – 100 °C |
| Temperature control accuracy (±) | 0.1 °C |
| Minimum sample volume | 0.50 mL (0.5 mL) |
| Weight | 4.8 kg |
| Dimensions (HxWxD) | 193 mm x 208 mm x 226 mm |
Automatic Temperature Control
The integrated Peltier temperature control quickly heats up or cools down the measuring cell, reliably maintaining the sample at the desired temperature.
Status Light
The status light of the instrument shows if it is ready for a measurement (green), busy (blinking), or waiting for operator interaction (orange).
Automated Sampling, Rinsing and Drying
Automating workflows save time, reduces costs and improves safety. The R4 is compatible with a large portfolio of autosamplers including solutions for single or multiple samples, and samples which are solid at room temperature.
Upgradable System
The Excellence R4 can be upgraded to a dedicated automatic multiparameter system combining density, refractive index, pH, color, titration and more to save time, increase data quality and prevent the alteration of samples between individual analyses.
الوثائق
الملحقات
3-way valve used for switching from sampling to rinsing solution or for waste separation.
رقم المادة: 30474898
Fast and reliable automation to run multiple low viscous samples. Various configurations available with capacity to run up to 303 samples depending on the choice of beaker sizes (from 25 to 250 mL).
رقم المادة: 30094290
Corded barcode reader for the reading of 1D / linear codes
رقم المادة: 21901297
ScanStraight Barcode Reader for the SC30 autosampler.
رقم المادة: 51337185
Kit for connecting a Lovibond Colorimeter to a multiparameter system.
رقم المادة: 51337021
Kit for connecting a UV5 Spectrophotometer to a multiparameter system.
رقم المادة: 30474868
Kit for connecting a SevenEasy, SevenCompact or SevenDirect conductivity meter a multiparameter system.
رقم المادة: 51337022
Tube kit to connect the SPR200 pump to the Excellence Density Meter or Refractometer.
رقم المادة: 30474908
Kit for connecting a Konica Minolta Colorimeter to a multiparameter system.
رقم المادة: 30025477
Refractive index cell connecting kit for Excellence refractometers
رقم المادة: 51337024
When using a refractometer and a sample changer unit the holding plate accommodates the external flow cell for a pH / conductivity sensor
رقم المادة: 51337197
Insert for lid of measuring cell for Excellence Refractometers
رقم المادة: 51337159
P-56RUE Thermal printer supports printing on thermal paper. It can be connected via RS232, USB and Ethernet interfaces.
رقم المادة: 30094673
P-58RUE Thermal Printer offers statistics, formulation, totaling applications and label printing with barcodes or matrix codes. It can be connected via RS232, USB and Ethernet interfaces.
رقم المادة: 30094674
Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection
رقم المادة: 30702998
Spare part lid including magnets for Excellence refractometers
رقم المادة: 30474909
ErgoSens, optical infrared sensor for hands-free operation. Connection via Aux 1, Aux 2
رقم المادة: 11132601
Kit for connecting a SevenEasy, SevenCompact or SevenDirect pH Meter to a multiparameter system.
رقم المادة: 51337023
The press can simply be clipped onto the cover lid and makes it possible to measure pasty or semi-solid products such as fruit pulp on Excellence refractometers
رقم المادة: 51337155
SPR200 Peristaltic Reversible Pump for InMotion™ autosamplers, Excellence Density Meters, Refractometers, Titrators and UV-Vis Spectrophotometers.
رقم المادة: 30094285
The foil stamp pushes samples such as foils, granulates or gums flat on the prism of Excellence refractometers and ensures full contact of the sample with the measuring cell during measurements.
رقم المادة: 30097047
High repeatability and low solvent consumption with automatic sampling, rinsing and drying. The pressurized filling system prevents sample evaporation and bubble formation and it can cope with all types of samples from low- to high-viscosity.
رقم المادة: 51326000
Ideal for samples that are highly viscous or solid at room temperature, the SC1H ensures high repeatability, safety and low solvent consumption with automatic sampling, rinsing and drying. The pressurized filling system prevents bubble formation.
رقم المادة: 51326400
High throughput, excellent repeatability and low solvent consumption with automatic sampling, rinsing and drying. The pressurized filling system prevents sample evaporation, bubble formation and it can cope with samples from low- to high-viscosity.
رقم المادة: 51327000
Ideal for samples that are highly viscous or solid at room temperature, the SC30H ensures high repeatability, safety and low solvent consumption with automatic sampling, rinsing and drying. The pressurized filling system prevents bubble formation.
رقم المادة: 51327500
Stand for SC1H or SC30H heated autosamplers. Includes adapter for tubing insulation.
رقم المادة: 30474896
The semi-automated valve/pump combination is suitable for low viscous samples, ensuring high results repeatability and more convenient measurements. Connect the DryPro drying pump for automatic sampling, rinsing and drying.
رقم المادة: 30474907
The LevelSens™ waste sensor ensures toxic or harmful samples don't overflow from the waste container.
رقم المادة: 51109863
المواد الاستهلاكية
مواد استهلاكية وملحقات لجهاز قياس معامل الانكسار Excellence
Water density / refractive index combined standard (9 mL)
رقم المادة: 51338010
Dichlorotoulene density / refractive index combined standard (9 mL)
رقم المادة: 51338013
Bromonaphthalene density / refractive index combined standard (9 mL)
رقم المادة: 51338014
برمجة
LabX Refractometry Software
LabX Express Starter Pack for Density and Refractometry, includes one instrument license for Density and Refractometry. Can be expanded up to 3 instruments.
رقم المادة: 11153130
LabX Server Starter Pack for Density and Refractometry, includes the user management and auto import/export options and one instrument license for Density and Refractometry. Can be expanded up to 60 instruments.
رقم المادة: 11153131
LabX instrument license to connect an additional density meter and refractometer with a LabX system.
رقم المادة: 11153250
